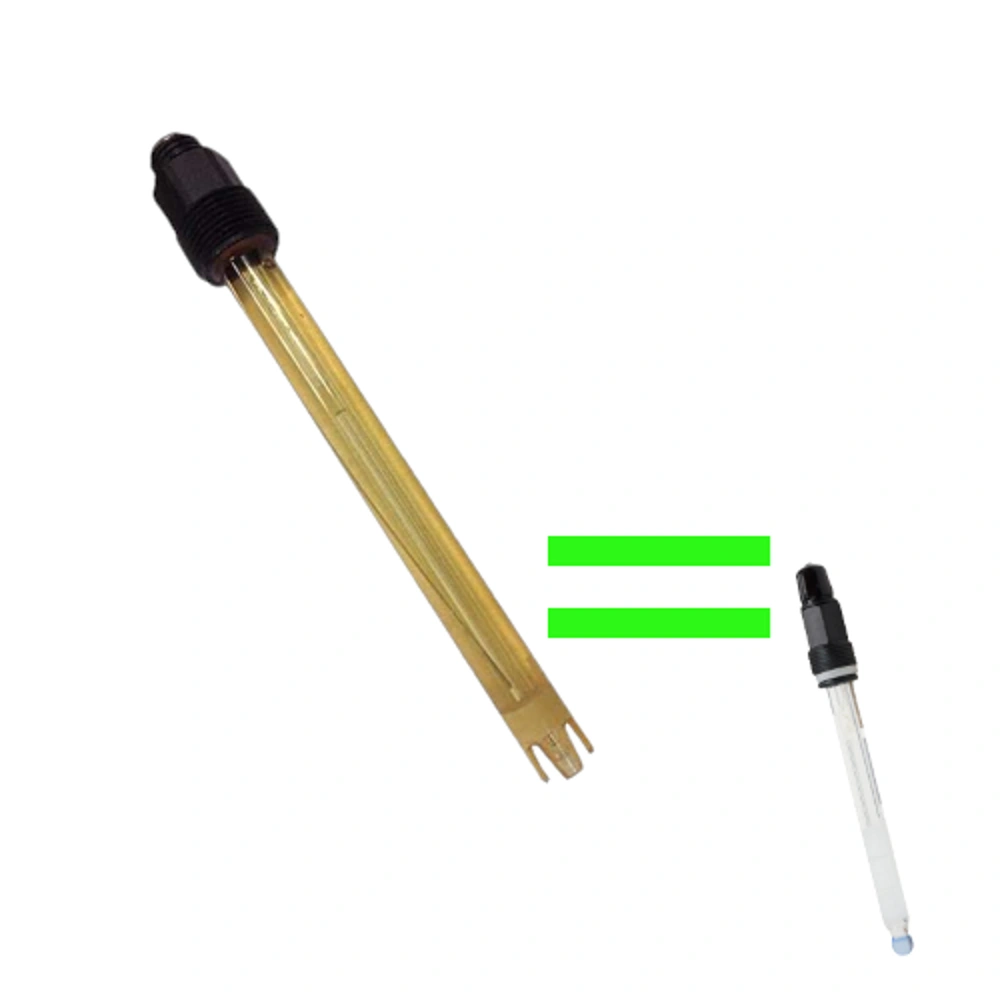

Equivalent pH probe for replacement of Syclope CAA2503

pH replacement probe for Syclope reference: CAA2503

Sonde pH redOx
EQUI2-1585

Replacement pH probe for Syclope reference: CAA2503. This probe is equivalent to the one provided with the Syclope and is perfect as a spare part.

Hurry up! Only 499 still articles in stock.
€125
VAT included
Quantity

In stock

The CAA2503 pH probe is a replacement probe for the Syclope. It is designed to measure pH in liquids and aqueous solutions. This probe is made with high-quality materials to ensure long life and accurate results. It is compatible with the Syclope and can be used as an equivalent probe.

: EQUI2-1585
: 499 Items
Hurry up! Only 499 still articles in stock.

Data sheet

Cable length
without cable
Diameter
12 mm
Original manufacturer
Length
150 mm
Type of connector
S6 ,S8 ( SN6) - Din 13.5 Cap
Junction characteristic
Pellon-HDPE
Reference solution
3.5 M KCl/AgCl (gel)
Type of glass membrane
Glass bulb
Service temperature range
0-60°C
Sensor body material
Polycarbonate
Zero point
0 mV PH 7 (+/-20 mV )
Asymmetry potential
+/-20 mV
Slope sensitivity
97% of Theoretical Slope
Weight
105 g
Span
0-14 pH
Response time
95% in 1 second
Relative working pressure range
0-4 bar
Lifetime
1 year warranty. 3 years in most cases
Original reference
