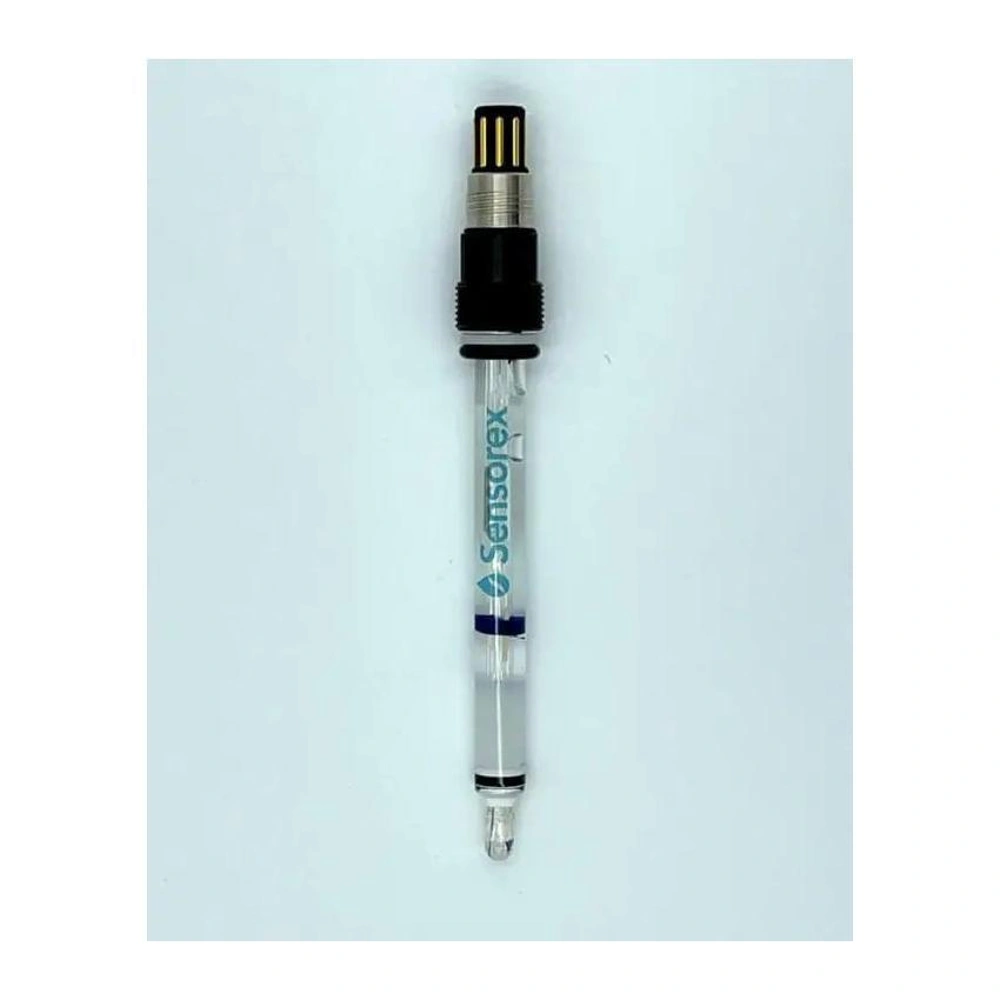

Replaced Sensorex GG165 pH Probe with CPS91-3-BT-2-ESA Part, Produced by E+H

The product described falls under the category name of Replacement Sensorex pH and ORP Probe with Glass Body for H+E Probes. This product is under the parent category 'Gt / gc series glass-body process pH and ORP electrodes'. The product reference is GG165 and is manufactured by the reputable electronics company, Sensorex. It replaces the part with the reference number CPS91-3-BT-2-ESA and this part is originally from E+H. The Sensorex Ordercode for the replacement is GG165.

The product features differ slightly from the original. The Sensorex Sensor has Variopin and does not use the Top68 connector. Note that additional cables may be required. Furthermore, please acknowledge that Sensorex does not provide Ex-certification. Despite these comments and deviations, the replacement product has a pH Range of 0…14, which supports an optimal working environment.

This product’s physical measurements and characteristics include a diameter of 12mm and a length of 120mm. It is constructed out of a durable and resilient glass body material and comes with a VarioPin connector. Technically, it employs a reference system of Ag/AgCl with an extended Diffusion path of 40mm. Its temperature compensation is founded on a Pt1000 basis and utilises Polymer electrolyte. It has a Junction with 2 open pores. The product can function adequately within the temperature range of -5…130°C and can withstand a maximum pressure of 5 bar.

In summary, this replacement Sensorex pH and ORP Probe with Glass Body for H+E Probes contributes a reliable and convenient solution to your pH and ORP electrode needs.
