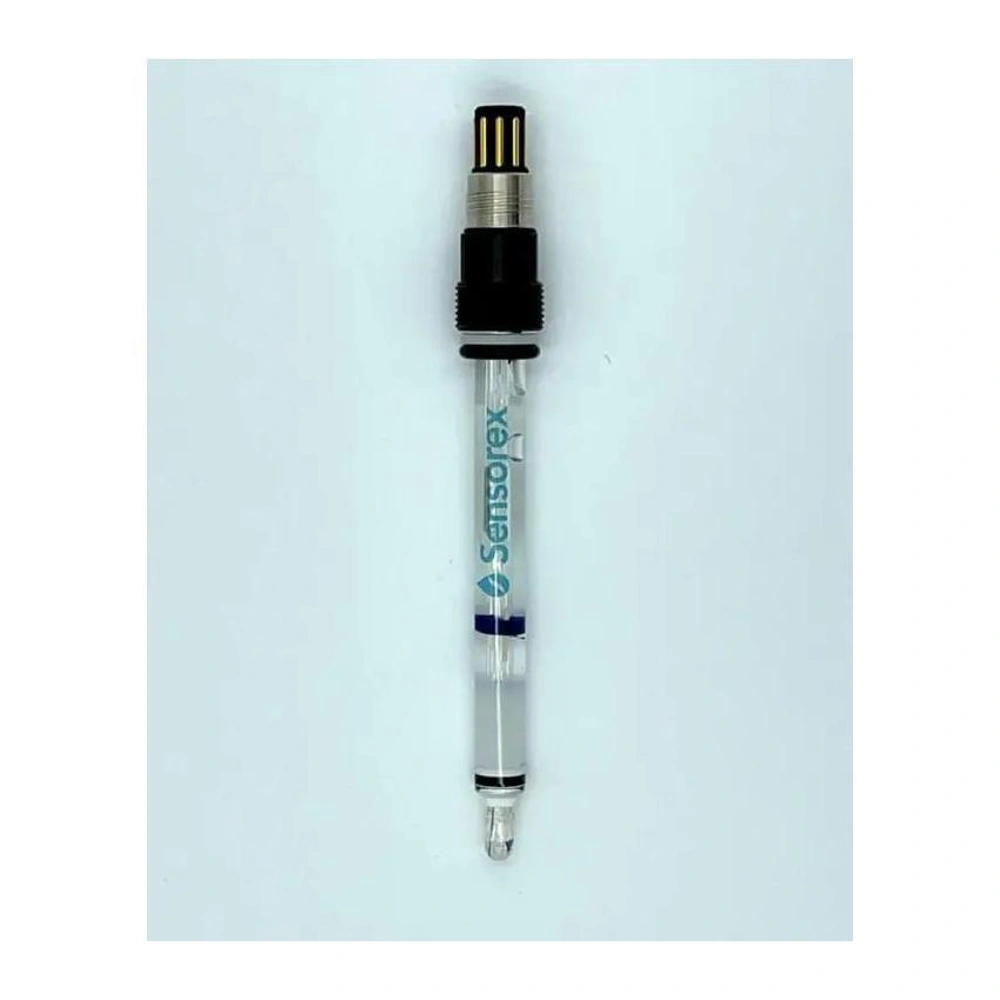

Replaced E+H CPS91-2-BT-2-ESA with Sensorex GG160 pH Sensor, Manufactured by Sensorex

The Sensorex GG160, from the GT / GC series, is a highly precise, effective, and reliable replacement sensor for H+E probes. Manufactured by Sensorex, a leading and trustworthy producer of sensing technology, the GG160 is ideal for pH and ORP measurements, thanks to its extensive pH range of 0-14. Equipped with a durable and high-quality glass body, this sensor is designed to endure.

This versatile sensor features a diameter of 12 mm, perfect for convenient installation and fitment. It is also designed to function optimally within a temperature range of -5 to 130°C, making it suitable for various environments. With a maximum pressure rating of 5 bar, the GG160 promises to deliver results under pressure.

The design of the GG160 includes an efficient VarioPin connector system, which replaces parts reference CPS91-2-BT-2-ESA from the renowned E+H manufacturer. Please note that additional cabling might be required as the Sensorex GG160 uses a Variopin system and does not use the Top68 connector. Also note that Sensorex does not provide Ex-certification.

The GG160 boasts an Ag/AgCl reference system with an extended diffusion path of 40 mm, and a Pt100 temperature compensation system. The electrolyte system is made from high-quality polymer, and it has 2 open pore junctions, making for a system that is well-equipped to deliver lucky and precise measurements.

The GG160 has a length of 120 mm, ensuring an ideal balance between size and functionality. With its advanced features, the GG160 from Sensorex is a top choice for replacing H+E probes, ensuring high-quality, accurate, and reliable pH and ORP measurement in your processes.
