Replaced H+E Probe with Sensorex GG101, parts from E+H CPS91-1-BO-2-ESC

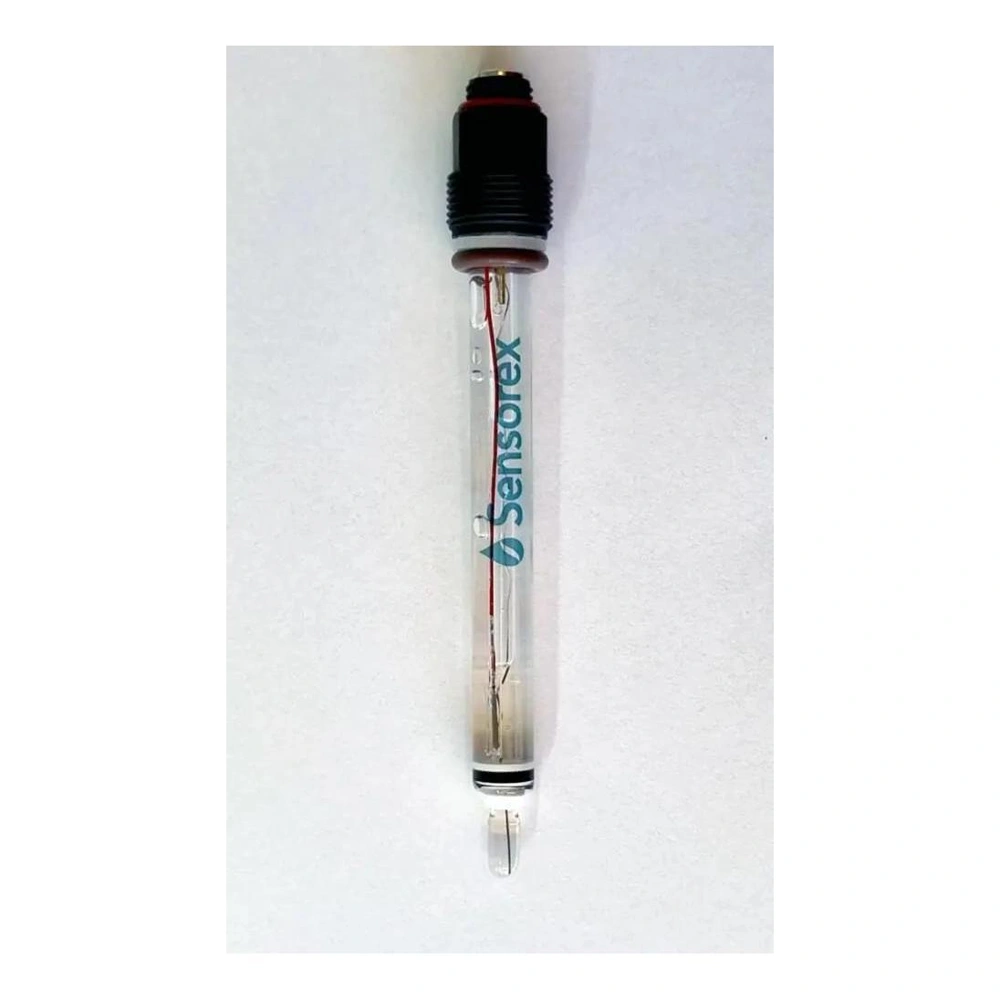

The GG101 product is a state-of-the-art replacement pH and ORP probe from Sensorex. This advanced probe belongs to the GT / GC series of glass-body process pH and ORP electrodes category, a series notably appreciated for its relevant qualifications in its parent category - pH sensors and electrodes.

Manufactured by Sensorex, the GG101 is designed to replace the CPS91-1-BO-2-ESC ph probe, originally manufactured by E+H. With an applicable pH range of 0 to 14, it showcases extreme versatility. The GG101 is crafted with a diameter of 12 mm and a length of 120 mm, an optimal size for various environments. The probe can also function in a temperature range of -5 to 130°C and withstand the maximum pressure of 5 bar, making it suitable for a range of harsh conditions.

GG101 exhibits Sensorex's unique S8 connector system. This is distinct from the Top68 connector system found in many probes, so additional cables may be needed for integration within certain systems. It's notable that this probe features a VarioPin connector promising flexibility and more accessible interfacing options.

One of the most striking features is the reference system with Ag/AgCl with an extended Diffusion path of 40 mm. The GG101 uses the Sensorex-exclusive polymer electrolyte, known for exceptional durability and reliability. The probe has a sleek glass body and features two open pore junctions, which enhances its performance by ensuring the containment and proper dispersion of the electrolyte.

In conclusion, GG101 is a versatile, durable, and highly compatible replacement pH and ORP probe that provides optimal performance and value in numerous contexts.
