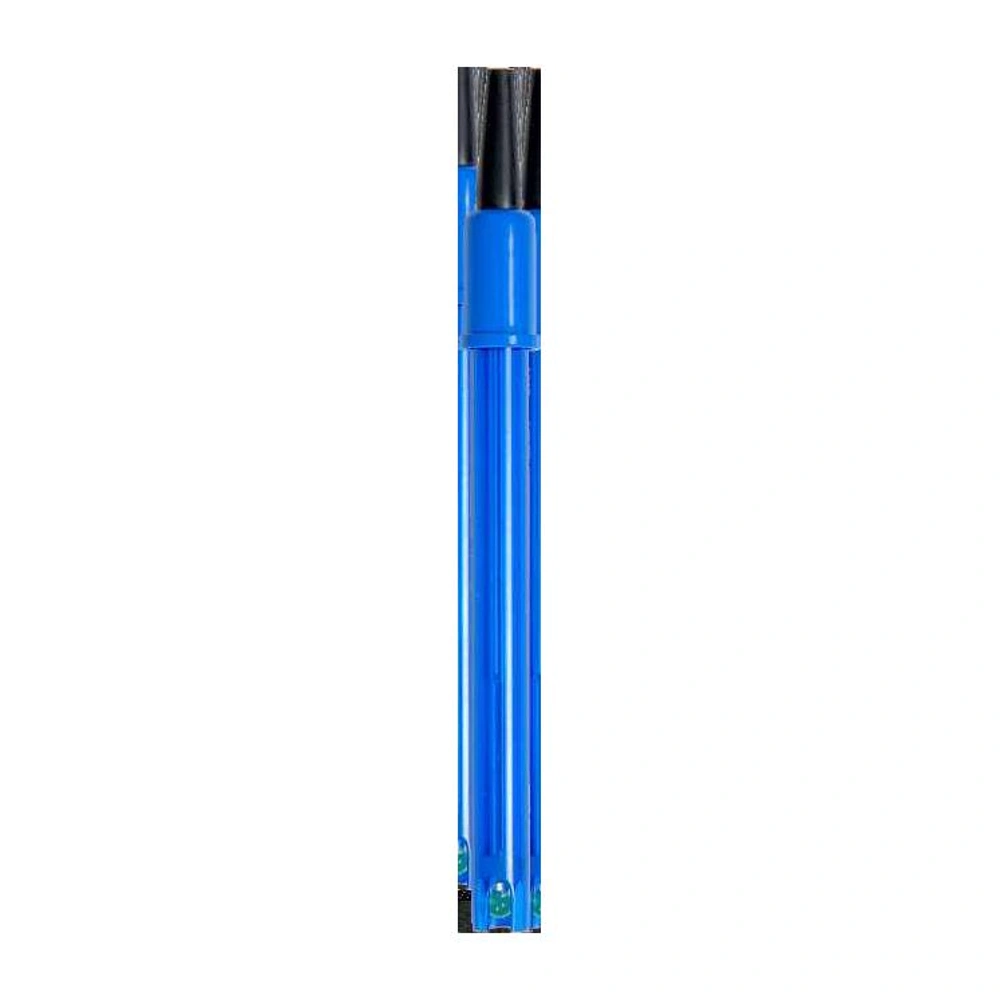

Toschon CAH 11 D High Temperature PH Electrode with Ceramic Diaphragm

ÉQUIPEMENT SCIENTIFIQUE TOSCHON - Sonde ph toschon CAH 11 D

The Sonde ph toschon CAH 11 D is a high-temperature pH electrode designed for use in scientific applications. It is ideal for use in laboratories, research facilities, and other scientific environments where accurate pH measurements are required.

The electrode is designed to operate in temperatures up to 130 °C and can withstand pressures of up to 6 bars at 25 °C. It features a glass shaft that is 120 mm in length and 12 mm in diameter, with a ceramic diaphragm and a single junction membrane. The membrane is spherical in shape and is made from glass.

The electrode has a pH range of 0-14 and features a reference system of Ag/AgCl with a reference electrolyte of KCl. It comes with a low-noise coaxial cable and can be fitted with a BNC or other type of connector. The electrode does not feature temperature compensation.

Features:

• Type of electrode: PH electrodes
• Key designation: High temperature
• Operating temperature range: 0 to 130 °C
• PH range: 0 - 14
• Pressure: up to 6 bars at 25 °C
• Shaft material: Glass
• Membrane glass
• Shaft length (mm): 120
• Diameter (mm): 12
• Diaphragm: Ceramic
• Number junction junction: Single
• Membrane shape: Spherical
• Temperature compensation: No
• Reference system: Ag/AgCl
• Reference electrolyte: KCl
• Cable: Low noise coaxial cable
• Cable length: N/A
• Connector type: BNC or other connectors
