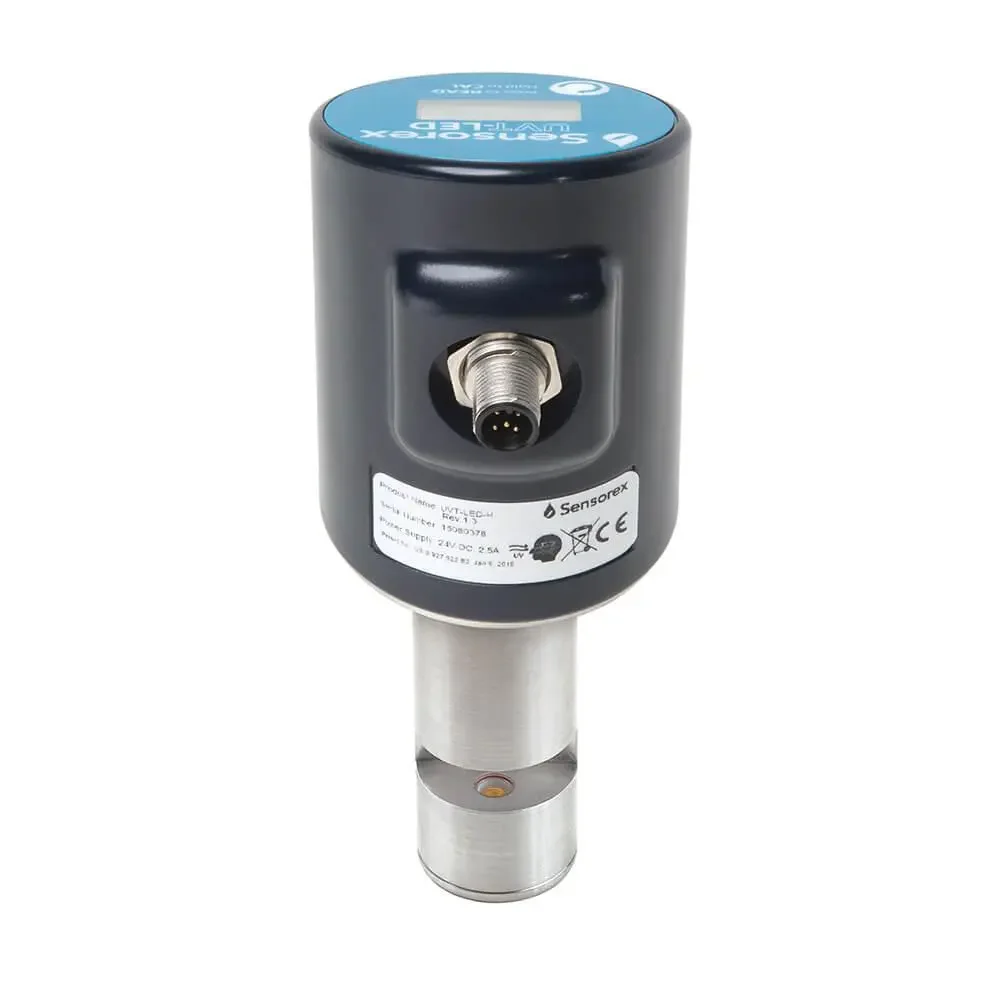

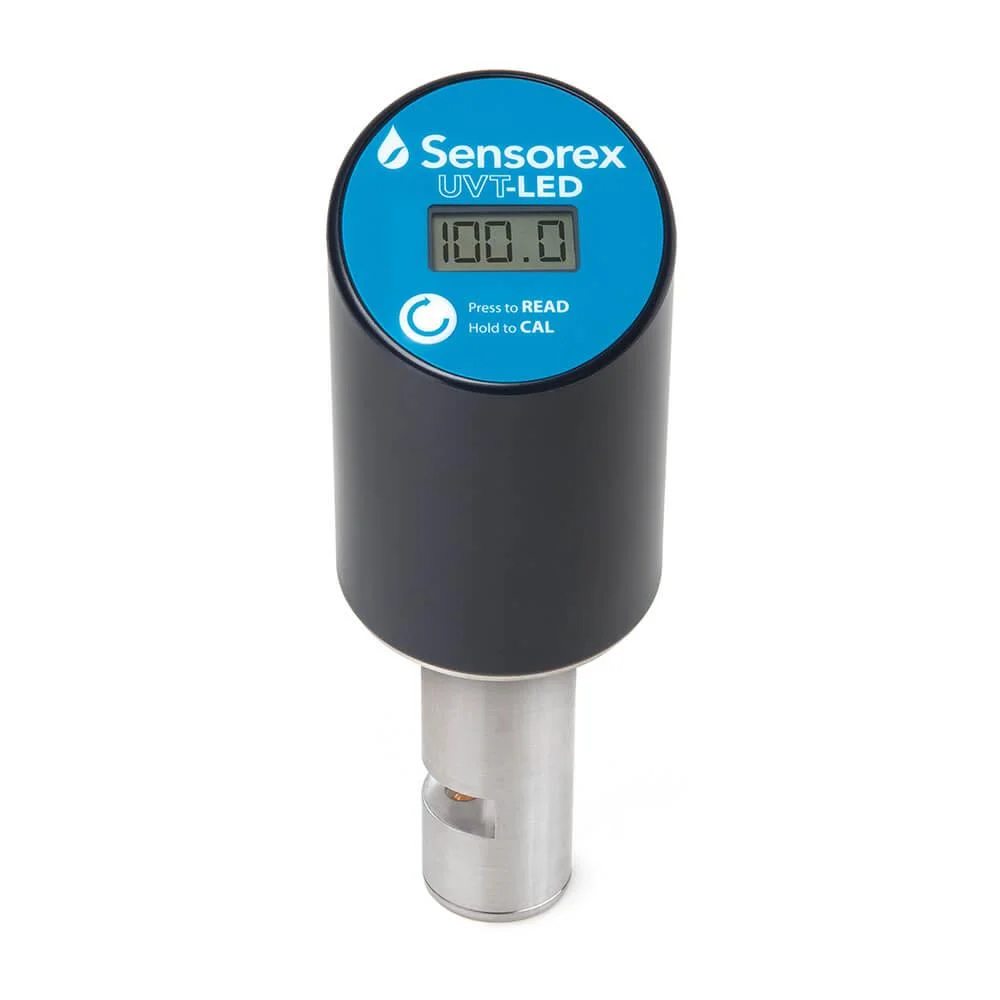

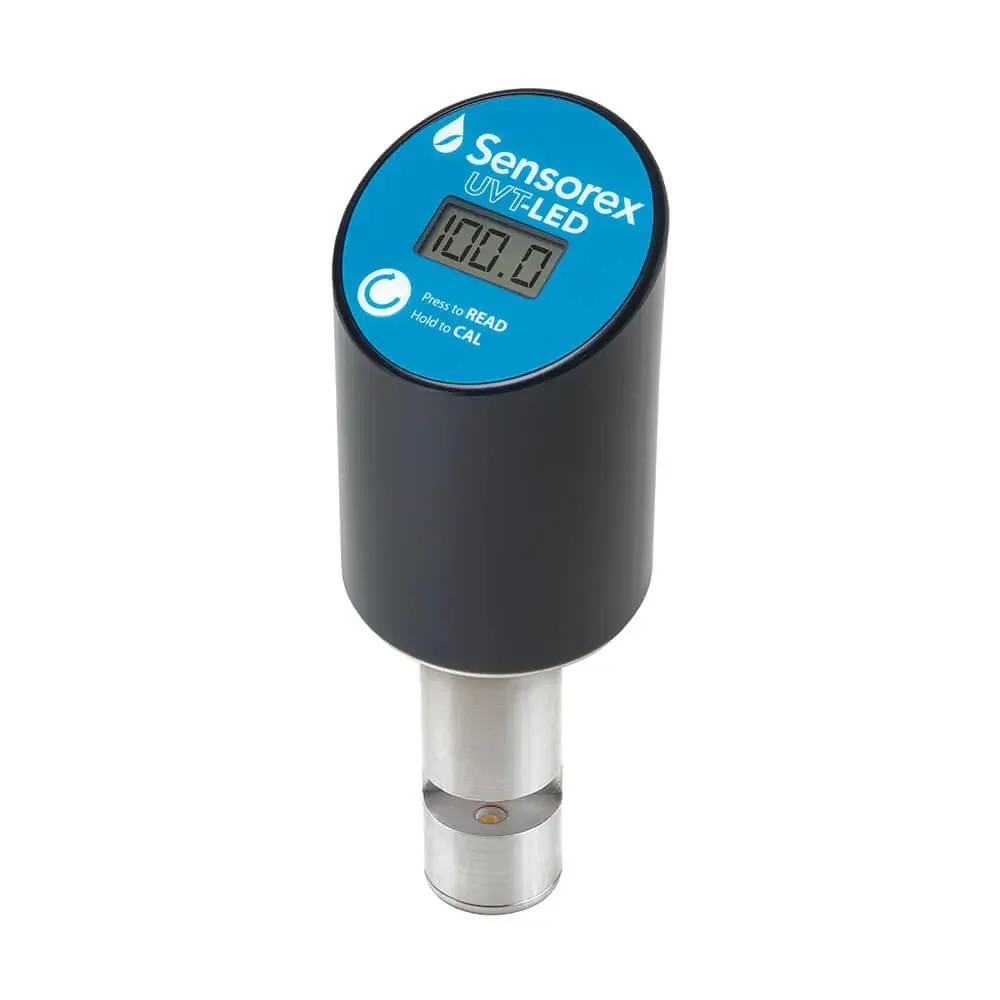

UVT-LED-H Handheld UV Transmittance Monitor


UVT-LED-H Handheld UV Transmittance Monitor

UVT-LED-H-NA
Our UVT-LED-H Handheld UV Transmittance Monitor is ergonomic, lightweight, and simple to use. Obtain incredibly accurate UV Transmittance data on water samples with easy one-button operation.  The UVT-LED-H features high performance LED technology for up to 5x longer lifetime, easy to read backlit LCD to instantly display measurements, and integrated rechargeable Nickel Cadmium battery, all in one of the most compact packages of any UV Transmittance sensor available. Stable measurements driven by high-performance UV-C LED technology Ergonomic, lightweight and portable No warm up time, no disposable cuvettes, and no replacement lamps Take up to 350 measurements on a single battery charge Quick and easy calibration with DI water
Power Supply : North America
Out of stock
€5,037
VAT included
Quantity

Out-of-Stock

Our UVT-LED-H Portable UV Transmittance Monitor is ergonomic, lightweight, and simple to use. Obtain incredibly accurate UV Transmittance data on water samples with easy one-button operation.  The UVT-LED-H features high performance LED technology for up to 5x longer lifetime, easy to read backlit LCD to instantly display measurements, and integrated rechargeable Nickel Cadmium battery, all in one of the most compact packages of any UV Transmittance sensor available.

  • Stable measurements driven by high-performance UV-C LED technology
  • Ergonomic, lightweight and portable
  • No warm up time, no disposable cuvettes, and no replacement lamps
  • Take up to 350 measurements on a single battery charge
  • Quick and easy calibration with DI water

CA Residents: Prop 65 WARNING(S)

Read More


  • Measurement Technique: UV absorption method (single beam technique), reagent-free

    Wavelength: 254nm

    Measurement Path Length: 1cm

    Output: 4-20 mA

    Power Supply: 24V DC (included)

    Accuracy: 1.0% T

    Resolution: 0.1% T

    Display: LCD with LED Backlight

    Measurement Range: 10% – 100% T

    IP Ingress Rating: IP66

    Warranty: 2 Year Limited Warranty

    Dimensions: 7.55” H × 2.56” Dia

    Weight: 0.9 lbs (0.41 kg)


UVT-LED Instructions
DOWNLOAD
UVT-LED-H Specifications
DOWNLOAD

Weight2.02 lbs
Dimensions12 × 8 × 4 in
Power SupplyNorth America, Rest of Worldwide
ParameterUVT

Our UVT-LED-H Handheld UV Transmittance Monitor is ergonomic, lightweight, and simple to use. Obtain incredibly accurate UV Transmittance data on water samples with easy one-button operation.  The UVT-LED-H features high performance LED technology for up to 5x longer lifetime, easy to read backlit LCD to instantly display measurements, and integrated rechargeable Nickel Cadmium battery, all in one of the most compact packages of any UV Transmittance sensor available.

  • Stable measurements driven by high-performance UV-C LED technology
  • Ergonomic, lightweight and portable
  • No warm up time, no disposable cuvettes, and no replacement lamps
  • Take up to 350 measurements on a single battery charge
  • Quick and easy calibration with DI water
: UVT-LED-H-NA
Out of stock

Data sheet

Power Supply
24V DC (included)
North America, Rest of Worldwide
Dimensions
7.55" H x 2.56" Dia
12 x 8 x 4 in
Applications
Lab Sensors, UV Transmittance
Measurement Range
10% - 100% T
Warranty
2 Year Limited Warranty
Measurement Technique
UV absorption method (single beam technique), reagent-free
Wavelength
254nm
Measurement Path Length
1cm
Output
4-20 mA
Accuracy
1.0% T
Resolution
0.1% T
IP Ingress Rating
IP66
Display
LCD with LED Backlight
Parameter
UVT
Weight
0.9 lbs (0.41 kg)
2.02 lbs
