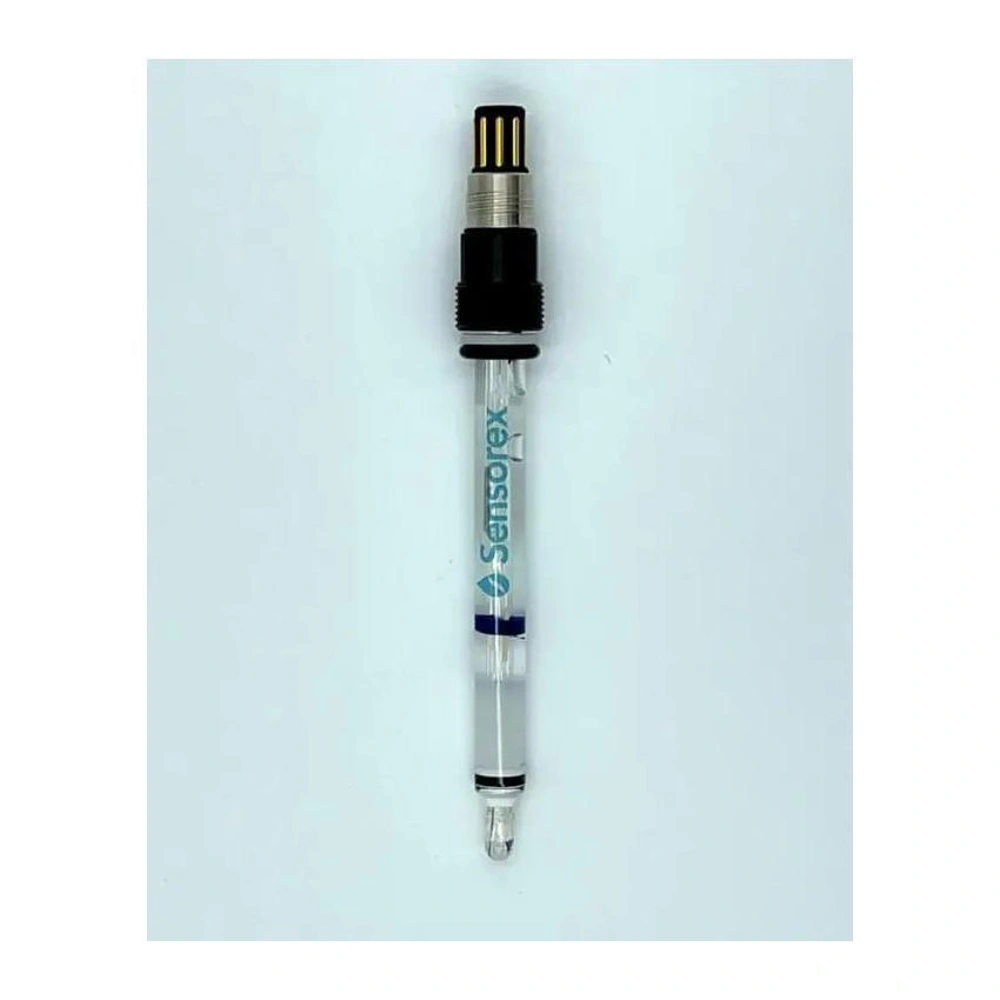

Sensorex GG165 Glass Body pH-ATC Sensor VarioPin PT1000

Product Description for GT / GC SERIES GLASS-BODY PROCESS pH AND ORP ELECTRODES

Introducing the GG165 Glass body pH/ATC sensor, a high-quality and reliable process pH and ORP electrode, ideally suited for a wide range of applications. Manufactured by SENSOREX, a leading manufacturer in the industry, this electrode offers excellent performance with its durable glass body and advanced features.

Belonging to the GT / GC SERIES family, the glass-body process pH and ORP electrodes are designed to cater to various requirements present in different categories. The category name is pH 0…14, and the category parent name is -5…130°C temperature range.

The GG165 is designed to provide accurate and consistent readings in nearly any process. Boasting a pH range of 0 to 14, 12mm diameter, and temperature range of -5°C to 130°C, this sensor is versatile and accommodating. Able to withstand a max pressure of 5 bar, it's also designed to tackle demanding applications.

Measuring 120mm in length with a 12mm diameter, the GG165 glass body pH/ATC sensor is made of high-quality glass material. It features a VarioPin connector, which ensures secure and reliable electrical connections. The reference system is an advanced Ag/AgCl system with an extended diffusion path of 40mm, providing better stability and accuracy in measurement.

The GG165 also includes a Pt1000 temperature compensation feature, ensuring optimal performance across a broad range of temperatures. Equipped with a two open pore junction and filled with a polymer electrolyte, it offers an unparalleled combination of durability and precision.

Overall, the GG165 Glass-body process pH and ORP electrode is an excellent choice for users seeking accurate and reliable pH and ORP measurement. Its advanced features, durable construction, and reliable performance make it a valuable addition to any process control system.

SKU: GG165
Manufacturer: SENSOREX
Diameter: 12 mm
Temperature Range: -5…130°C
Max. Pressure: 5 bar
Length: 120 mm
Body Material: Glass
Connector: VarioPin connector
Reference system: Ag/AgCl with extended Diffusion path (40 mm)
Temp Comp: Pt1000
Elektrolyte: Polymer
Junction: 2 open pore
