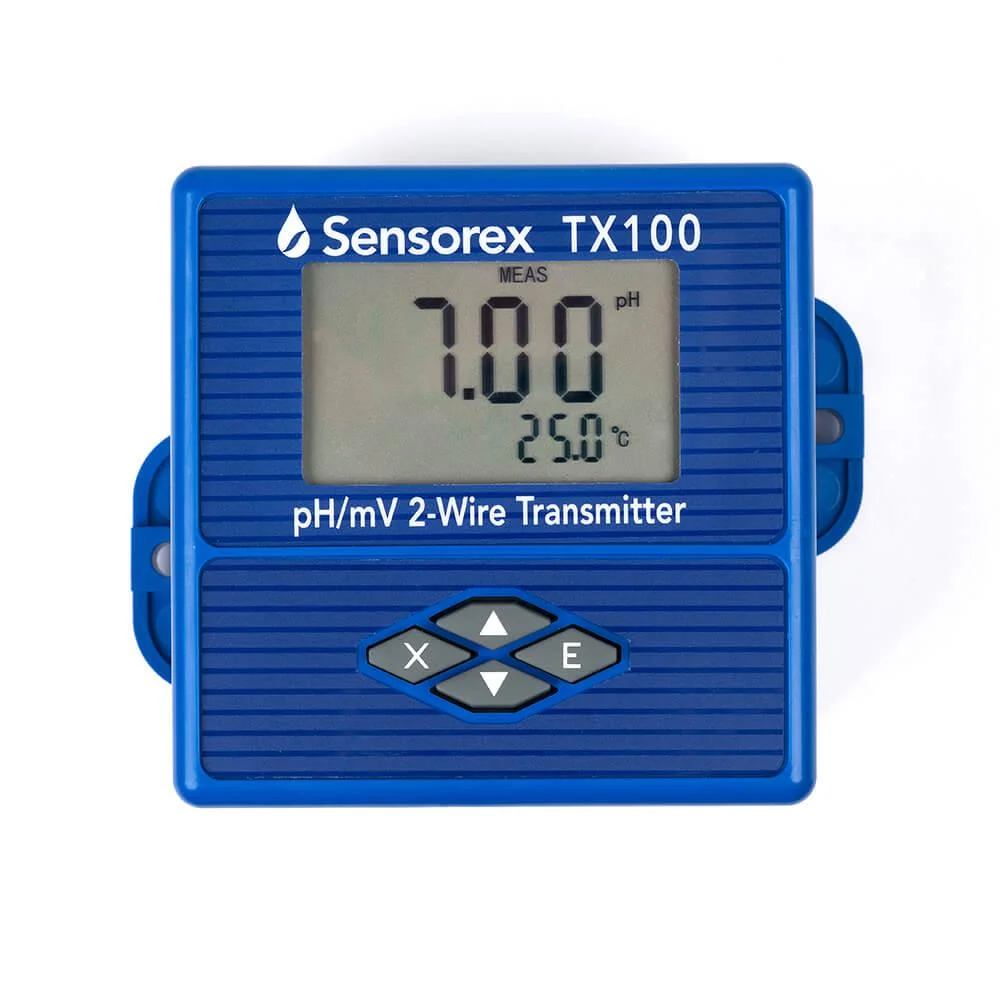

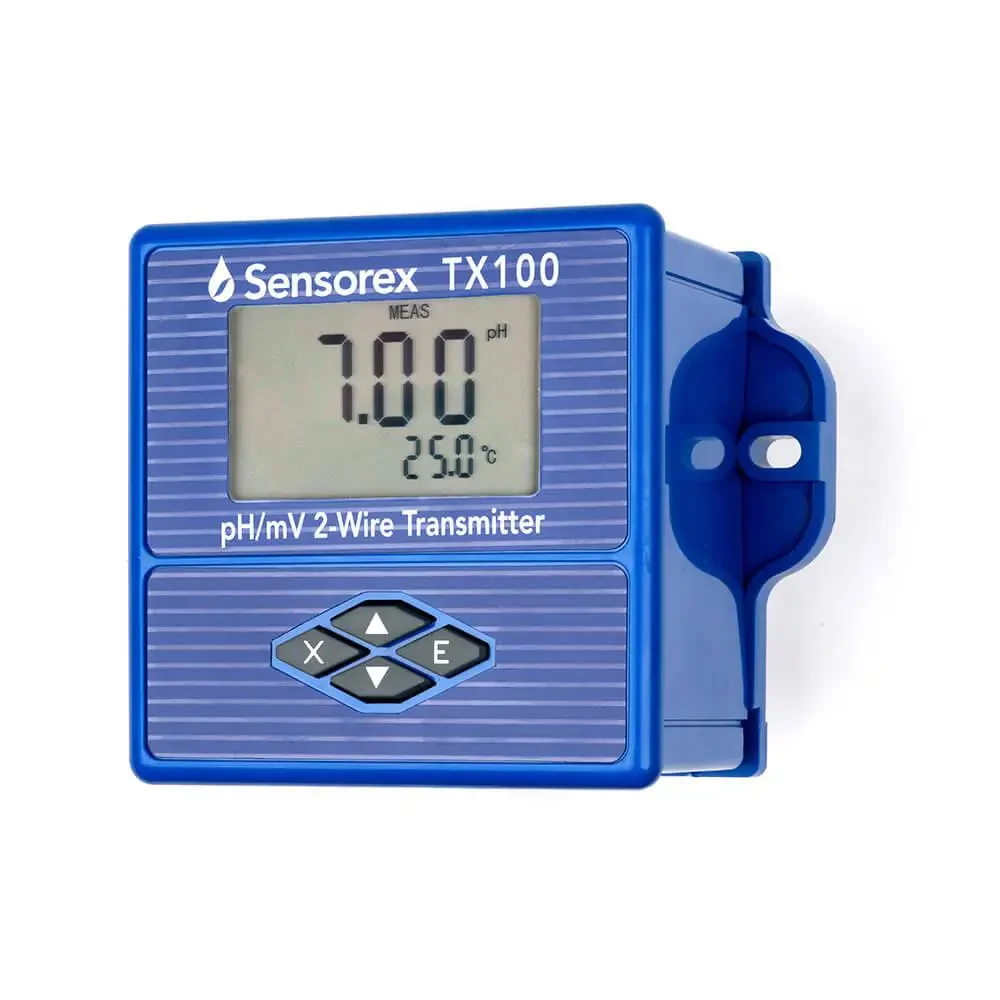

Our TX100 is a fully-featured ORP/pH transmitter for use with pH and ORP sensors. The large display shows pH/ORP value simultaneously with temperature. Versatile mounting options for wall, panel, DIN rail or pipe mount.
- Reliable pH/ORP monitoring: Proven technology for pH/ORP monitoring and 4-20mA output signal transmission
- Simple sensor calibration: Large display shows sensor data and aids in the calibration process
- Automatic sensor maintenance alerts: User-programmable sensor maintenance reminders help ensure your system always obtains accurate data
- Compatible with a wide variety of sensors: For use with all Sensorex combination-style pH/ORP sensors
- One year limited warranty: We stand behind all our products with the Sensorex Guarantee
Note: Transmitter is only compatible with sensors with tinned leads.
CA Residents: Prop 65 WARNING(S)
Measuring Range
- pH: 0.00 to 14.00 pH, 0.01 pH resolution, ± 0.01 accuracy
- ORP/mV: -1999mV to 1999mV, 1mV resolution, ± 2mV accuracy
- Temperature: -20°C (-4°F) to 110°C (230°F), 0.1° C/F resolution
Current Output Range: 2.00mA to 24mA, .01mA resolution, ±0.005mA accuracy, 500V input/output isolation
Enclosure: NEMA 4X IP65, ABS case with push-button control pad
Dimensions : 3.9’’ (99.1 mm) H x 3.9’’ (99.1mm) W x 2.9’’ (74.7mm) D
Weight: approx. 1lb (0.45 kg)
Mounting Options: Wall, panel, din rail, and pipe
Conduit Openings: 2 each 3/8’’ NPT openings (cordgrips included)
Ambient Temperature: Transmitter Service, 0°C (32°F) to 60°C (140°F)
Ambient Humidity: 0-95%, non-condensing
Location: Designed for non-hazardous areas
Temperature Input: 2-wire Pt1000 RTD with automatic compensation
Max Sensor to Transmitter Distance: 30 feet (9.1 meters)
Power Requirement: 12-24 VDC, max 600 Ohm load
| Weight | 1.44 lbs |
|---|
| Dimensions | 9.5 × 6.5 × 3.5 in |
|---|
Our TX100 is a fully-featured pH/ORP transmitter for use with pH and ORP sensors. The large display shows pH/ORP value simultaneously with temperature. Versatile mounting options for wall, panel, DIN rail or pipe mount.
- Reliable pH/ORP monitoring
- Simple sensor calibration
- Automatic sensor maintenance alerts
- Compatible with a wide variety of Sensorex pH/ORP sensors
- One year limited warranty
Note: Transmitter is only compatible with sensors with tinned leads.
