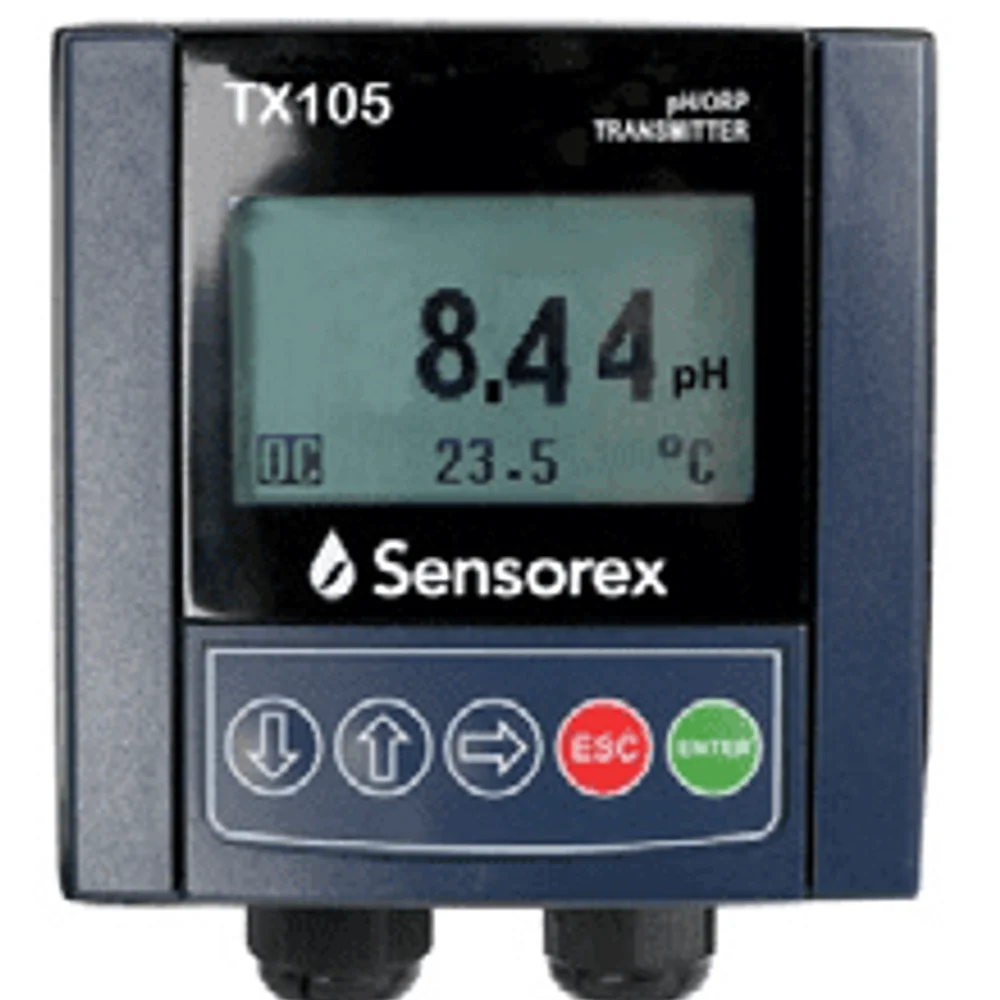

TX105 - pH/ORP Transmitter, Loop Powered 4-20mA

TX105 - pH/ORP Transmitter, Loop Powered 4-20mA

TX105
Our TX105 is a fully-featured pH/ORP transmitter for use with pH and ORP sensors. The large display shows pH/ORP value simultaneously with temperature. Versatile mounting options for panel, DIN rail or pipe mount. Reliable pH/ORP monitoring Simple sensor calibration Automatic sensor maintenance alerts Compatible with a wide variety of Sensorex pH/ORP sensors One year limited warranty Note: Transmitter is only compatible with sensors with tinned leads.
Hurry up! Only 100 still articles in stock.
€1,414.00
VAT included
Quantity

Our TX105 is a fully-featured ORP/pH transmitter for use with pH and ORP sensors. The large display shows pH/ORP value simultaneously with temperature. Versatile mounting options for panel, DIN rail or pipe mount.

  • Reliable pH/ORP monitoring: Proven technology for pH/ORP monitoring and 4-20mA output signal transmission
  • Simple sensor calibration: Large display shows sensor data and aids in the calibration process
  • Automatic sensor maintenance alerts: User-programmable sensor maintenance reminders help ensure your system always obtains accurate data
  • Compatible with a wide variety of sensors: For use with all Sensorex combination-style pH/ORP sensors
  • One year limited warranty: We stand behind all our products with the Sensorex Guarantee

Note: Transmitter is only compatible with sensors with tinned leads.

CA Residents: Prop 65 WARNING(S)

Read More


  • Measurement Range (pH): 0.00 to 14.00pH, 0.01 pH resolution, +/- 0.01 accuracy

    Measurement Range (ORP/mV): -1999mV to 1999mV, 1mV resolution, +/- 2mV accuracy

    Media Temperature Range: 0 °C to 80 °C , 0.1 °C resolution, 0.2 °C accuracy

    Current Output Range: 2.00mA to 24mA, 0.01mA resolution, +/-0.005mA accuracy, 500V input/output isolation

    Enclosure: NEMA 4X IP65, ABS case with push-button control pad; HWD: 3.9” (99.1 mm) x 3.9” (99.1 mm) x 2.9” (74.7mm)

    Mounting Options: Wall, Pipe or Panel (Panel mount requires accessory TX105A panel mount kit sold separately)

    Ambient Operating Temperature: 0° C to 70° C

    Storage Temperature: 10° C to 70° C

    Ambient Humidity: 0 to 95%, non-condensing

    Location: Designed for non-hazardous environments

    Maximum Sensor to Transmitter Distance: 30 feet (9.1 meters)

    Conduit Openings: 2 each 3/8″ NPT openings (cord grips included)

    Temperature Input: 2-wire Pt1000Ω RTD with automatic compensation

    Power Requirement: 12-24 VDC, max 600Ohm load

    Warranty: One year limited warranty

    Weight: Approx. 1lb (0.45kg)


TX105 Specifications
DOWNLOAD
TX105 Instructions
DOWNLOAD

Weight1.44 lbs
Dimensions9.5 × 6.5 × 3.5 in

Our TX105 is a fully-featured pH/ORP transmitter for use with pH and ORP sensors. The large display shows pH/ORP value simultaneously with temperature. Versatile mounting options for panel, DIN rail or pipe mount.

  • Reliable pH/ORP monitoring
  • Simple sensor calibration
  • Automatic sensor maintenance alerts
  • Compatible with a wide variety of Sensorex pH/ORP sensors
  • One year limited warranty

Note: Transmitter is only compatible with sensors with tinned leads.

: TX105
: 100 Items
Hurry up! Only 100 still articles in stock.

Data sheet

Ambient Humidity
0 to 95%, non-condensing
H WD
3.9" (99.1 mm) x 3.9" (99.1 mm) x 2.9" (74.7mm)
Storage Temperature
10° C to 70° C
Media Temperature Range
0 °C to 80 °C , 0.1 °C resolution, 0.2 °C accuracy
Current Output Range
2.00mA to 24mA, 0.01mA resolution, +/-0.005mA accuracy, 500V input/output isolation
Location
Designed for non-hazardous environments
Maximum Sensor to Transmitter Distance
30 feet (9.1 meters)
Conduit Openings
2 each 3/8″ NPT openings (cord grips included)
Dimensions
9.5 x 6.5 x 3.5 in
Temperature Input
2-wire Pt1000Ω RTD with automatic compensation
Applications
Controllers & Transmitters, ORP, pH
Warranty
One year limited warranty
Power Requirement
12-24 VDC, max 600Ohm load
Measurement Range (pH)
0.00 to 14.00pH, 0.01 pH resolution, +/- 0.01 accuracy
Measurement Range (ORP/mV)
-1999mV to 1999mV, 1mV resolution, +/- 2mV accuracy
Enclosure
NEMA 4X IP65, ABS case with push-button control pad;
Ambient Operating Temperature
0° C to 70° C
Mounting Options
Wall, Pipe or Panel (Panel mount requires accessory TX105A panel mount kit sold separately)
Weight
1.44 lbs
Approx. 1lb (0.45kg)
