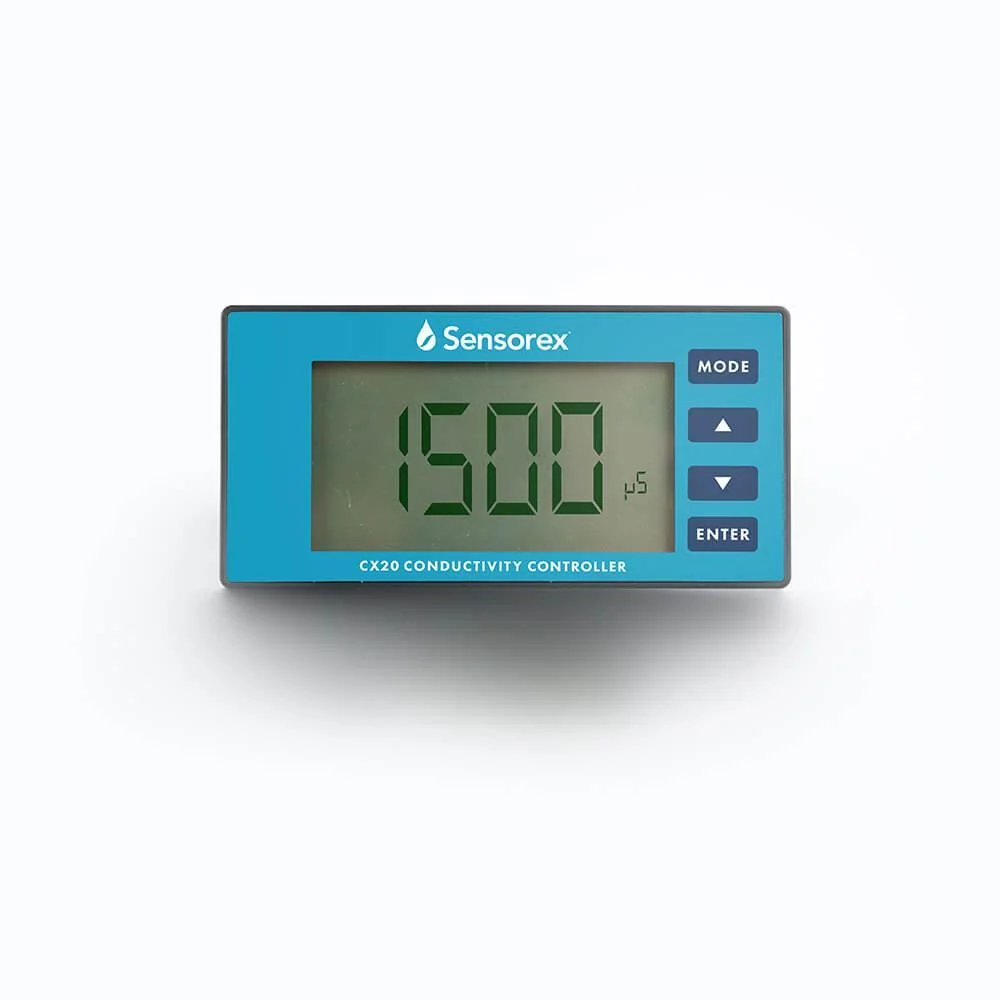

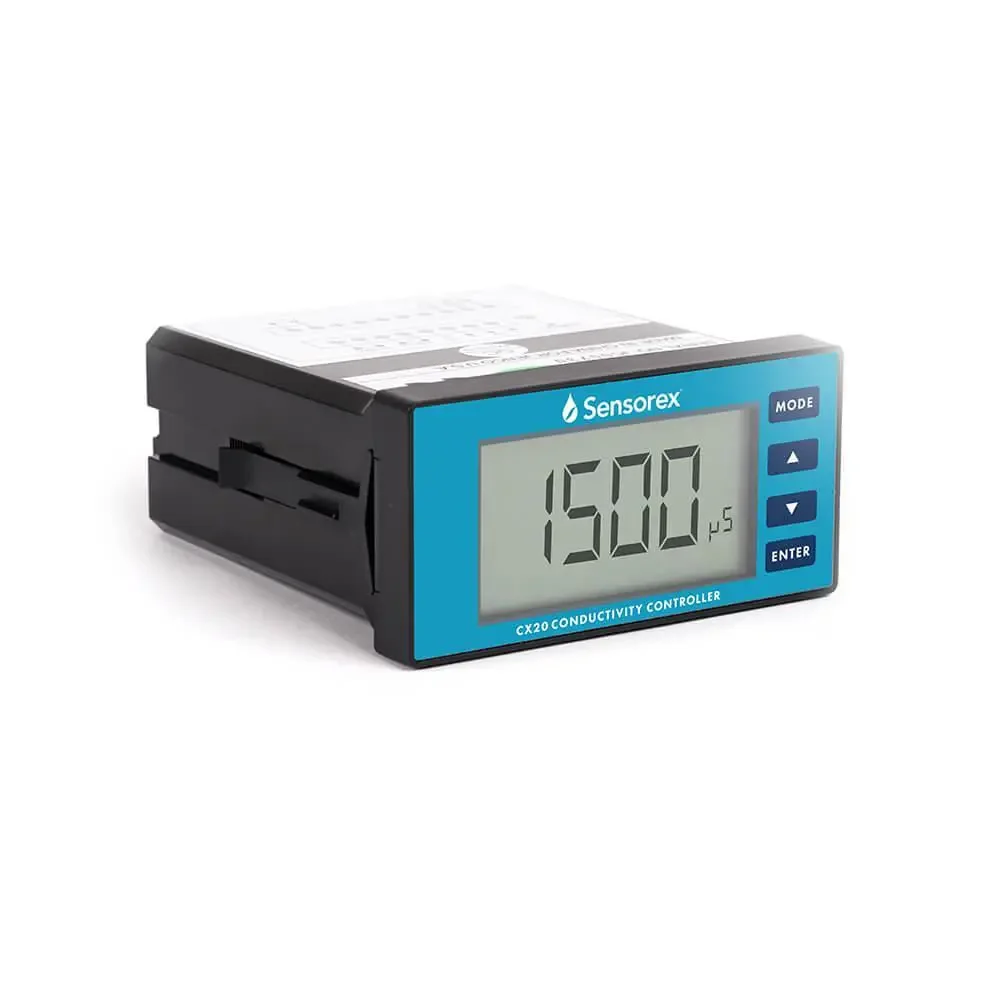

CX20 - Conductivity Controller

CX20 - Conductivity Controller

CX20
The CX20 conductivity controller is a convenient and cost effective solution for monitoring and maintaining conductivity. Save space in your panel with the small footprint 1/8 DIN case. Use the two sets of relay outputs to program process control, including management of alarms and chemical dosage systems. Easy to install 1/8 DIN Case Two sets of programmable relays for conductivity or resistivity Clear LCD displays conductivity, resistivity, or temperature 100-240 VAC power supply Note: Controller is only compatible with sensors that have spade lug or tinned lead connectors and 10k NTC temperature compensation.
Out of stock
€986
VAT included
Quantity

Out-of-Stock

The CX20 conductivity / EC controller is a convenient and cost effective solution for monitoring and maintaining conductivity. Save space in your panel with the small footprint 1/8 DIN case. Use the two sets of relay outputs to program process control, including management of alarms and chemical dosage systems.

  • Easy to install 1/8 DIN Case
  • Two sets of programmable relays for conductivity or resistivity
  • Clear LCD displays conductivity, resistivity, or temperature
  • 100-240 VAC power supply

Note: This conductivity controller is only compatible with sensors that have spade lug or tinned lead connectors and 10k NTC temperature compensation.

Looking for an EC (electrical conductivity) transmitter? Try our CX10 Conductivity Transmitter with 4-20mA output. Need an EC controller that’s also a 4-20mA transmitter? Check out the CX2000 Conductivity Controller.

CA Residents: Prop 65 WARNING(S)

Read More


  • Cell Constant: 0.01, 0.1, 1.0 (2 electrode)

    Reference Temperature: 25°C, factory set

    Temperature Coefficient: 2.00 or 0.00%, user selectable

    Temperature Sensor: Thermistor: 10k ohm at 25°C

    Operating Temperature: -10°C to 120°C (+/- 0.3°C, 0.1°C resolution)

    Relays: 5A at 115VAC or 2.5A at 220VAC (resistive only)

    Maximum Load: 500 ohm

    Output Accuracy: +/- 0.03mA

    Isolation Voltage: 500VDC

    Keys: Audio feedback for all keys

    Power: 100VAC to 240VAC, 50/60Hz

    Ambient Temperature Range: 0.0°C to 50.0°C

    Enclosure: 1/8 DIN (3.78″ L x 3.54″ W x 1.89″ H)


Instructions CX20
DOWNLOAD
CX10-CX20 Specifications
DOWNLOAD

Weight0.61 lbs
Dimensions3.78 × 3.54 × 1.89 in
ParameterConductivity

The CX20 conductivity controller is a convenient and cost effective solution for monitoring and maintaining conductivity. Save space in your panel with the small footprint 1/8 DIN case. Use the two sets of relay outputs to program process control, including management of alarms and chemical dosage systems.

  • Easy to install 1/8 DIN Case
  • Two sets of programmable relays for conductivity or resistivity
  • Clear LCD displays conductivity, resistivity, or temperature
  • 100-240 VAC power supply

Note: Controller is only compatible with sensors that have spade lug or tinned lead connectors and 10k NTC temperature compensation.

: CX20
Out of stock

Data sheet

Reference Temperature
25°C, factory set
Thermistor
10k ohm at 25°C
Operating Temperature
-10°C to 120°C (+/- 0.3°C, 0.1°C resolution)
Relays
5A at 115VAC or 2.5A at 220VAC (resistive only)
Maximum Load
500 ohm
Output Accuracy
+/- 0.03mA
Isolation Voltage
500VDC
Keys
Audio feedback for all keys
Power
100VAC to 240VAC, 50/60Hz
Ambient Temperature Range
0.0°C to 50.0°C
Dimensions
3.78 x 3.54 x 1.89 in
Applications
Conductivity, Controllers & Transmitters
Enclosure
1/8 DIN (3.78″ L x 3.54″ W x 1.89″ H)
Temperature Coefficient
2.00 or 0.00%, user selectable
Parameter
Conductivity
Cell Constant
0.01, 0.1, 1.0 (2 electrode)
Weight
0.61 lbs
