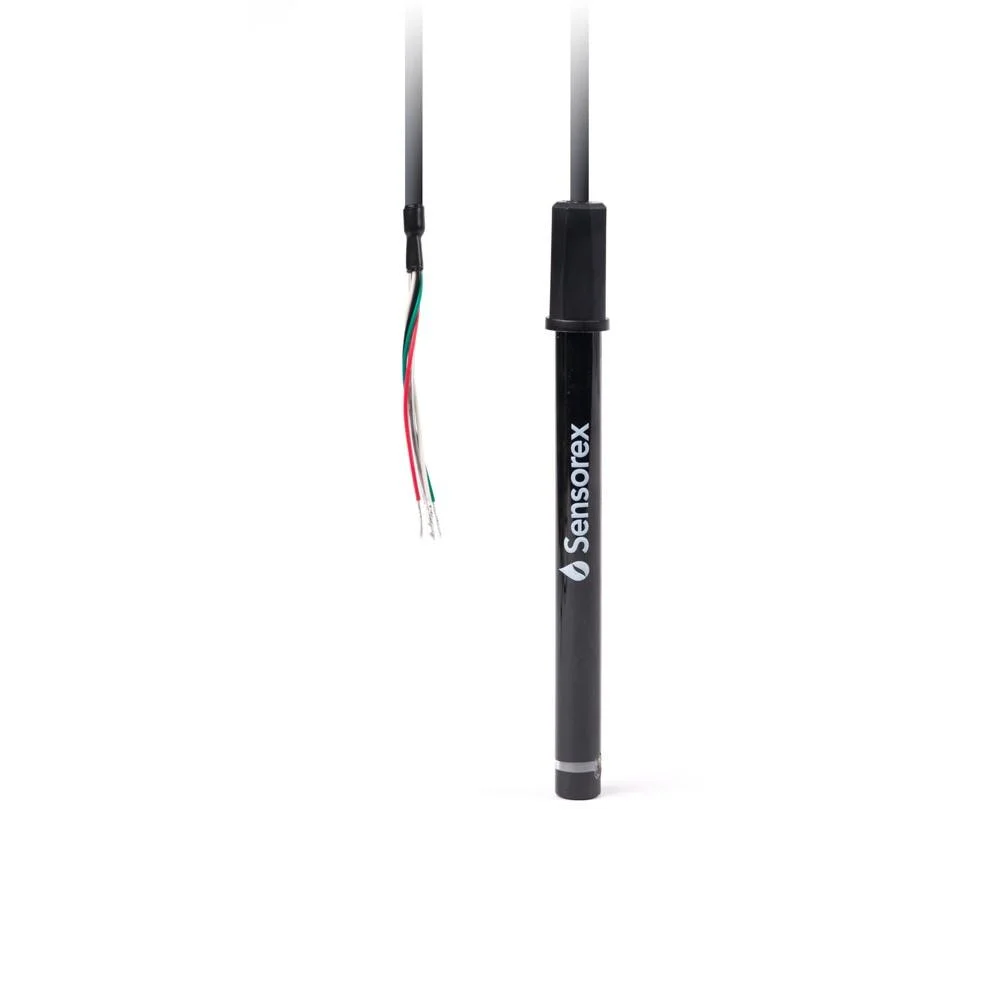

CS150 - Graphite Contacting Conductivity Sensor, 12 mm

CS150 - Graphite Contacting Conductivity Sensor, 12 mm

CS150TC-K=0.1/P1k/10/TL/TL
Used for Laboratory and Light Industrial Applications: Cell constants are made from graphite to provide good performance for the value. Configurable to Meet Your Exact Needs:  Select from our options below for a quick delivery or fill out the contact us form at the bottom for a custom product! Choose your cell constant, temperature compensation, cable lengths, and connectors Multiple Use Cases Submerge in a tank or mount in-line in a pipe. Lab version compatible with Sensorex’s CM1000 Process version (light industrial) compatible with Sensorex transmitters including: CX105, CX2000, CX2000RS, CX3100
Cell Constant : K=0.1 - 0.1/cm
Cable Length : 10 Foot Cable (3 meters)
Out of stock
€510
VAT included
Quantity

Out-of-Stock

Used for Laboratory and Light Industrial Applications: Cells are made from graphite to provide good performance for the value. Choose from 2 cell constants: 0.1/cm and 1.0/cm. Choose from our lab and process versions:

  • Lab versions: with 3 ft (1m) cable, 10K thermistor, and 8-pin connector (for use with Sensorex CM1000 meters).
  • Process versions: with 10 ft (3m) cable, PT1000 temperature element, and Tinned Leads (for use with Sensorex transmitters including: CX105, CX2000, CX2000RS, CX3100).

The sensor can be configured to meet your exact needs. Select from our available options for a quick delivery or fill out the contact us form at the bottom for a custom product! Other cell constants, temperature compensation, cable lengths, and connectors are available. The sensor can be submerged in a tank or mount in-line in a pipe.

CA Residents: Prop 65 WARNING(S)

Read More


  • Cell Constant: choose from k=0.1 or k=1.0 (+/- 10%)

    Graphite: Graphite

    Temperature Range: 0-70⁰ C

    Pressure Range: 0 – 100 PSIG

    Body Construction: Epoxy

    Cable Length: 3 ft or 10 ft

    Connector:

    • Sensors with 3ft (1m) cable feature 8-pin connector for use on Sensorex CM1000 benchtop Conductivity Meter.
    • Sensors with 10ft (3m) cable feature Tinned Leads for use with Sensorex transmitters including: CX105, CX2000, CX2000RS, CX3100

    Warranty: One year limited warranty


CS150 Instructions
DOWNLOAD
CS150 Specifications
DOWNLOAD

Weight0.20 lbs
Dimensions8.25 × 2.25 × 2.25 in
Cell ConstantK=0.1 - 0.1/cm, K=1.0 - 1/cm
Cable Length3 Foot Cable (1 meter), 10 Foot Cable (3 meters)

Used for Laboratory and Light Industrial Applications: Cell constants are made from graphite to provide good performance for the value.

Configurable to Meet Your Exact Needs:

  • Select from our options below for a quick delivery or fill out the contact us form at the bottom for a custom product!
  • Choose your cell constant, temperature compensation, cable lengths, and connectors

Multiple Use Cases

  • Submerge in a tank or mount in-line in a pipe.
  • Lab version compatible with Sensorex’s CM1000
  • Process version (light industrial) compatible with Sensorex transmitters including: CX105, CX2000, CX2000RS, CX3100
: CS150TC-K=0.1/P1k/10/TL/TL
Out of stock

Data sheet

Dimensions
8.25 x 2.25 x 2.25 in
Applications
Conductivity, Hydroponics & Agriculture, Lab Sensors, Online Sensors
Warranty
One year limited warranty
Pressure Range
0 - 100 PSIG
Body Construction
Epoxy
Graphite
Graphite
Cable length
3 Foot Cable (1 meter), 10 Foot Cable (3 meters)
3 ft or 10 ft
Temperature Range
0-70⁰ C
Cell Constant
K=0.1 - 0.1/cm, K=1.0 - 1/cm
choose from k=0.1 or k=1.0 (+/- 10%)
Weight
0.20 lbs
