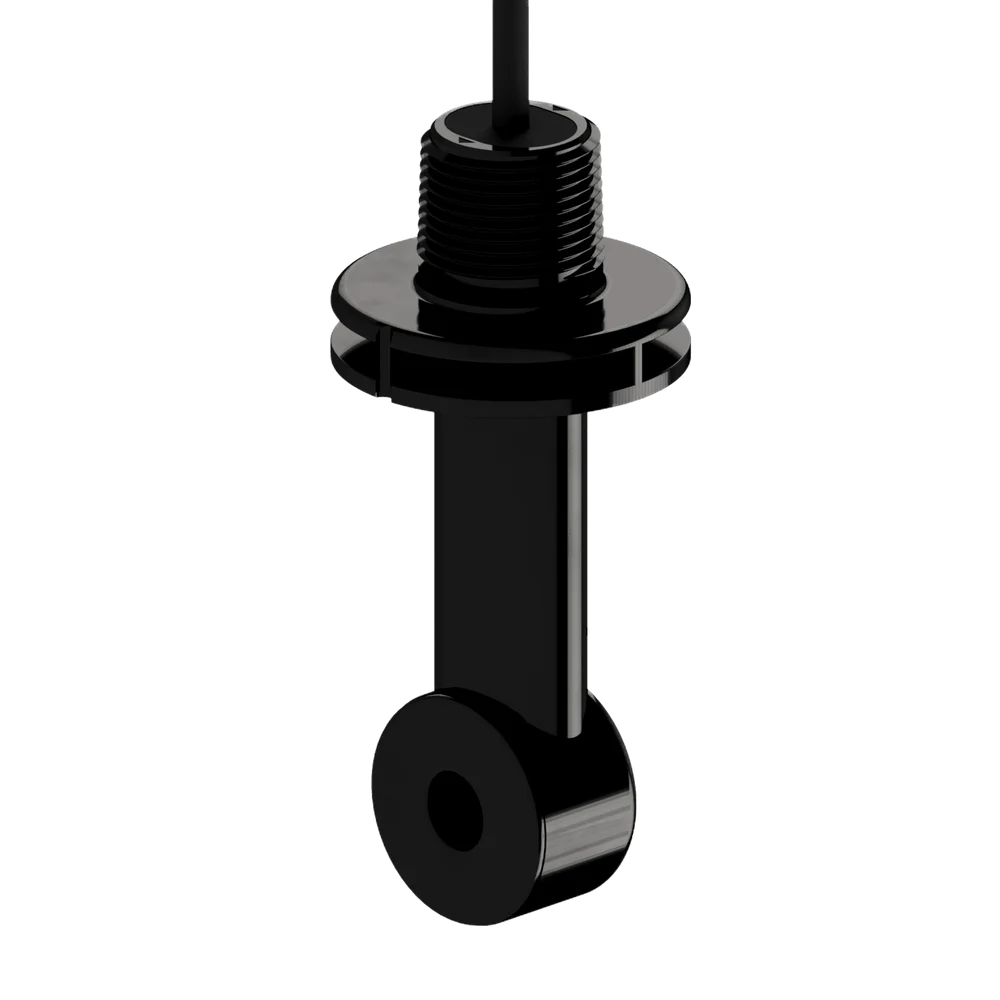

ITCS3020 - Smart General Purpose Noryl Toroidal Conductivity Sensor

ITCS3020 - Smart General Purpose Noryl Toroidal Conductivity Sensor

ITCS3020-MA/2000
Resistant to Corrosion, Coating, and Fouling Noryl body provides wide solvent tolerance and is stable up to 80°C Robust single-body design Wide Measurement Range Measures conductivity from 0 – 2,000,000 uS
Communications Setting : 4-20 mA
Range : B - High Range (0 - 2,000,000 uS)
Out of stock
€1,306
VAT included
Quantity

Out-of-Stock

Sensorex’s ITCS3020 Smart General Purpose Noryl Toroidal Conductivity Sensor communicates directly via 4-20mA or Modbus output.  Configuration and calibration done with free web-based software. The toiroidal  design resists corrosion, coating, and fouling. Noryl body provides wide solvent tolerance and is stable up to 80 C. It can measure conductivity up to 2,000,000 uS. The sensor body offers both 3/4 NPT for submersion applications and a flange for installing in a flow cell (FC95C Flow Cell – sold separately).

Read More


  • Temperature and Pressure Rating: 80°C and 150 psig

    Measuring Range: See ordering matrix

    Body Materials: Noryl

    Temperature Compensation: Pt 1000

    Cable Length: 20 ft (6 meters)

    Process Connection:

    • Submersion – 3/4″ MNPT
    • In-line – 2″ slip fitting to be used with FC95C flow cell (sold separately)

iTCS3020 Instructions
DOWNLOAD
Sensorex Smart Sensor Modbus User Instruction Rev 1.3
DOWNLOAD
Smart Sensor User Interface Advanced A Instructions
DOWNLOAD
Specs ITCS3020
DOWNLOAD
Smart Sensor Software
DOWNLOAD
SENSOREX SMART SENSORS BROCHURE
DOWNLOAD

Weight0.50 lbs
Dimensions8 × 4 × 2.25 in
RangeA - Low Range (0 – 500,000 uS), B - High Range (0 – 2,000,000 uS)
Communications SettingModbus, 4-20 mA

Resistant to Corrosion, Coating, and Fouling

  • Noryl body provides wide solvent tolerance and is stable up to 80°C
  • Robust single-body design

Wide Measurement Range

  • Measures conductivity from 0 – 2,000,000 uS
: ITCS3020-MA/2000
Out of stock

Data sheet

Dimensions
8 x 4 x 2.25 in
Applications
Conductivity, Hydroponics & Agriculture, Online Sensors, Smart Sensors, Toroidal Conductivity
Measuring Range
See ordering matrix
Temperature and Pressure Rating
80°C and 150 psig
Body Materials
Noryl
Communications Setting
Modbus, 4-20 mA
Cable length
20 ft (6 meters)
Temperature Compensation
Pt 1000
Range
A - Low Range (0 - 500,000 uS), B - High Range (0 - 2,000,000 uS)
Weight
0.50 lbs
