TCSP3020 and TCSP3021 - PEEK Toroidal Conductivity Sensor

TCSP3020 and TCSP3021 - PEEK Toroidal Conductivity Sensor

TCSP3021-1-CD-3-A-1

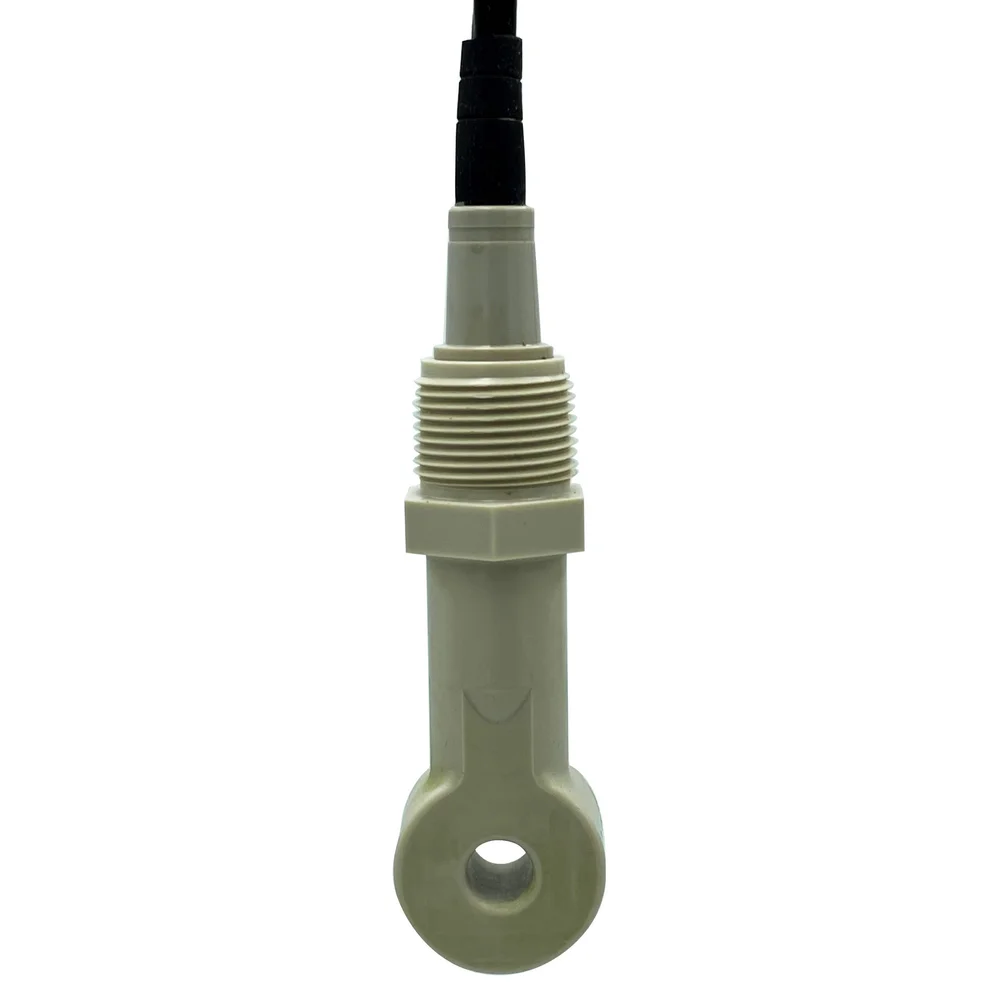

The Sensorex TCSP toroidal (inductive) conductivity sensors feature a wide measurement range and dependable toroidal technology over the range 0-2000 ms/cm. Resistant to corrosion, coatings and fouling common to contacting conductivity sensors, the TCSP3020 is designed for a trouble-free and long service life. PEEK (unfilled, polyetheretherketone) is the standard material of construction and has a wide solvent tolerance and temperature stability to 200 degrees C. The TCSP Models feature 3/4″ MNPT for submersion installation.
Use With : Sensorex SSRE
Cable Length : 20 ft (6 Meters)
Hurry up! Only 100 still articles in stock.
€1,335.00
VAT included
Quantity

The Sensorex TCSP toroidal (inductive) conductivity sensors feature a wide measurement range and dependable toroidal technology over the range 0-2000 ms/cm. Resistant to corrosion, coatings and fouling common to contacting conductivity sensors, the TCSP3020 is designed for a trouble-free and long service life.

PEEK (unfilled, polyetheretherketone) is the standard material of construction and has a wide solvent tolerance and temperature stability up to 170 degrees C. The TCSP Models features 3/4″ MNPT for submersion installation.

A PT1000 RTD temperature element is built into the sensor. All TCSP sensor models are available with 10ft or 20ft long 9-conductor cable. Custom lengths are available.

Choose from two output types:

TCSP3020: for use with EX2000RS, TCSMA, or TCSTX  transmitters

TCSP3021: for use with our SSRE remote electronics (models available to convert to MODBUS 485 or 4-20 mA output).

Read More


  • Measuring Range: 0-2,000,000 uS/cm
    Body Material: PEEK
    Max Temperature: 170°C
    Max Pressure: 300 psig
    Temperature Compensation: PT1000 RTD
    Cable Length: 9 conductor (6 conductor plus shields); available in standard 10ft or 20ft lengths; custom lengths available on request.
    Process Connection:  3/4″ MNPT


TCSP3020 Instructions
DOWNLOAD
TCSP3020 Specifications
DOWNLOAD

Weight1.00 lbs
Dimensions10 × 4 × 4 in
Use WithSensorex Transmitter, Sensorex SSRE
Cable Length10ft (3 meters), 20 ft (6 Meters)

The Sensorex TCSP toroidal (inductive) conductivity sensors feature a wide measurement range and dependable toroidal technology over the range 0-2000 ms/cm. Resistant to corrosion, coatings and fouling common to contacting conductivity sensors, the TCSP3020 is designed for a trouble-free and long service life.

PEEK (unfilled, polyetheretherketone) is the standard material of construction and has a wide solvent tolerance and temperature stability to 200 degrees C. The TCSP Models feature 3/4″ MNPT for submersion installation.

: TCSP3021-1-CD-3-A-1
Hurry up! Only 100 still articles in stock.

Data sheet

Dimensions
10 x 4 x 4 in
Applications
Conductivity, Featured, Online Sensors, Toroidal Conductivity
Measuring Range
0-2,000,000 uS/cm
Max Temperature
170°C
Max Pressure
300 psig
Process Connection
3/4″ MNPT
Use With
Sensorex Transmitter, Sensorex SSRE
Cable length
9 conductor (6 conductor plus shields); available in standard 10ft or 20ft lengths; custom lengths available on request.
10ft (3 meters), 20 ft (6 Meters)
Body Material
PEEK
Temperature Compensation
PT1000 RTD
Weight
1.00 lbs
