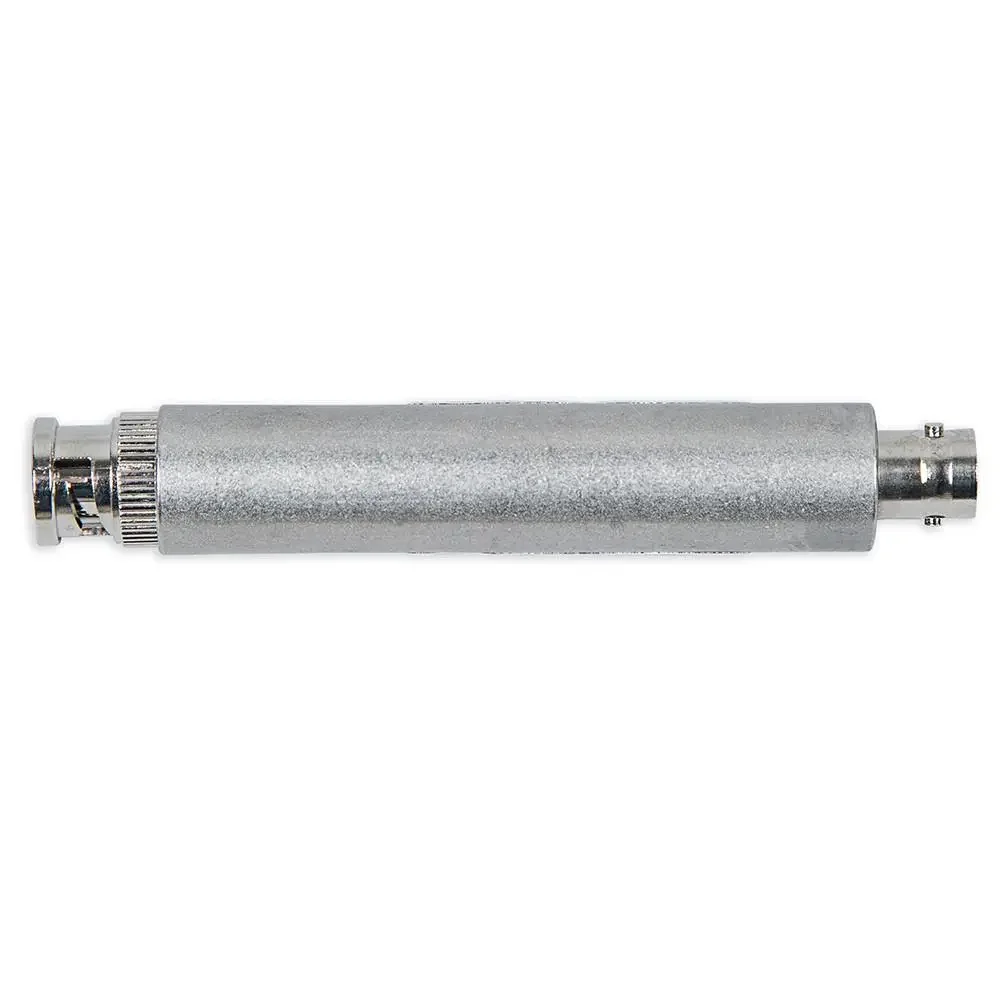

PHAMP-1 Unity Gain Preamplifier

PHAMP-1 Unity Gain Preamplifier

PHAMP-1
The PHAMP-1 is a battery-powered unity-gain preamplifier that allows the user to run cables up to 1000 feet between the electrode and pH or ORP controller, transmitter, or meter. Simply plug in any pH or ORP electrode equipped with a BNC connector, plug in the extension cable and your system is ready for use. Extend pH or ORP electrode signals up to 1,000 feet Compatible with any pH/ORP electrode with a BNC connector Instantly ready for use
En rupture de stock
277 €
TTC
Quantité

Rupture de stock

The PHAMP-1 is a battery-powered unity-gain preamplifier that allows the user to run cables up to 1000 feet between the electrode and pH or ORP controller, transmitter, or meter. Simply plug in any pH or ORP electrode equipped with a BNC connector, plug in the extension cable and your system is ready for use.

  • Extend pH or ORP electrode signals up to 1,000 feet
  • Compatible with any pH/ORP electrode with a BNC connector
  • Instantly ready for use

CA Residents: Prop 65 WARNING(S)

Read More


  • Dimensions 0.63″ diameter x 4.00″ length (see out- line drawing below)
    Materials of Construction Stainless steel
    Power Requirement Powered by two 3-volt Lithium cells not replaceable
    Input pH or ORP electrode with BNC connector impedance <1013 Ohms
    Output mV unity gain, <20,000 Ohms resistance
    Output Offset 2 mV max (0.03 pH units)
    Operating Temperature 0-60 deg C
    Weight 2 0z. (5.87 grams)



Weight0.20 lbs
Dimensions4 × 2 × 2 in

The PHAMP-1 is a battery-powered unity-gain preamplifier that allows the user to run cables up to 1000 feet between the electrode and pH or ORP controller, transmitter, or meter. Simply plug in any pH or ORP electrode equipped with a BNC connector, plug in the extension cable and your system is ready for use.

  • Extend pH or ORP electrode signals up to 1,000 feet
  • Compatible with any pH/ORP electrode with a BNC connector
  • Instantly ready for use
: PHAMP-1
En rupture de stock

Fiche technique

Dimensions
4 x 2 x 2 in
Applications
Installation Hardware & Accessories, pH
Poids
0.20 lbs
