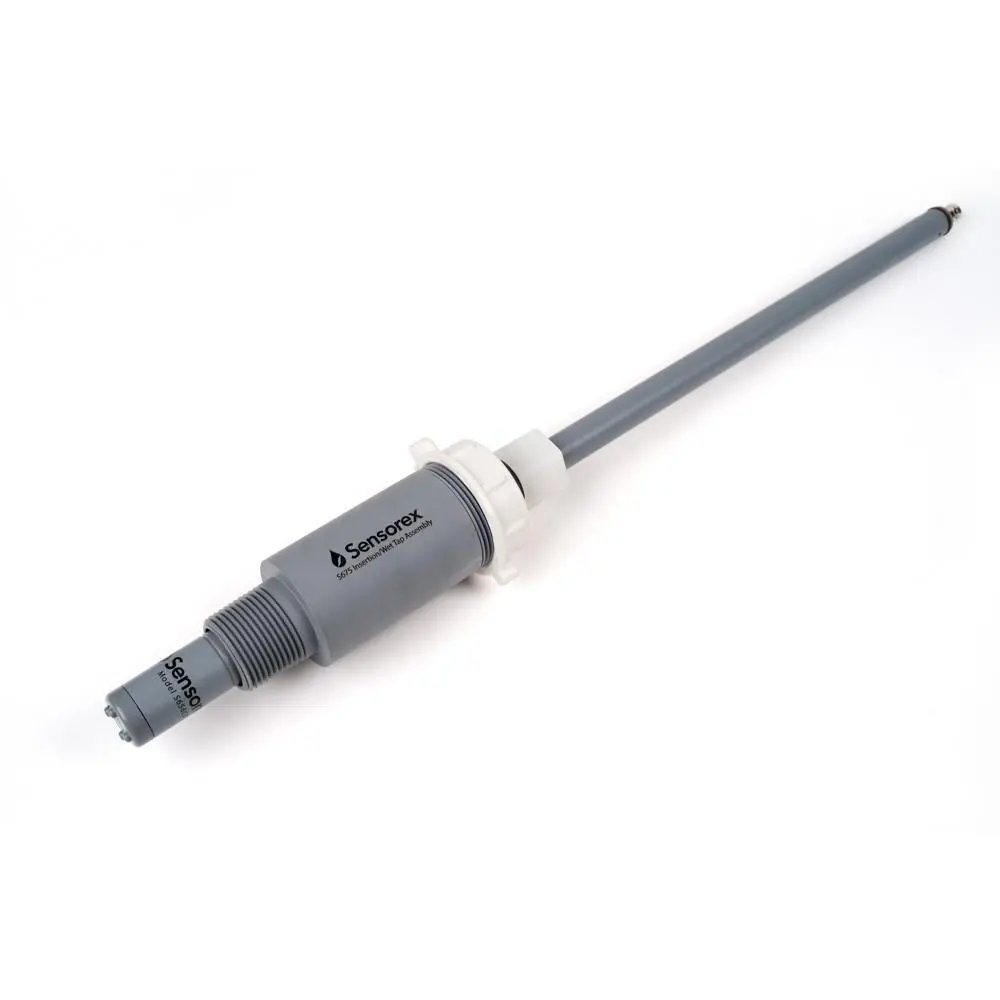

S675TC - Hot Tap Insertion Assembly for Use with S656 Series Sensors

S675TC - Hot Tap Insertion Assembly for Use with S656 Series Sensors

S675TC/P1K/10/TL/TL
Users installing into large tanks, large process lines and scrubber lines will appreciate this hot tap assembly to simplify installation. Adjustable insertion depth up to 12” ensures sensor is in flow for best results. Designed in CPVC for a user friendly cost compared to expensive stainless models, the S675 assembly is well suited for most water and wastewater treatment applications. Incorporates optional automatic temperature compensation (ATC) with 1000Ω RTD. Supplied with 10 foot cable. Designed for use with our S656CD Flat Surface pH Cartridge and BV-1 Ball Valve to facilitate removal from system without need for shutdown. Durable CPVC design is suitable for most applications Remove sensors for cleaning and maintenance without system shutdown Easy installation One year limited wa
Connector Type : tinned-leads
Temperature Compensation : 1000Ω RTD
Agotado
1.621 €
Impuestos incluidos
Cantidad

Fuera de stock

Users installing into large tanks, large process lines and scrubber lines will appreciate this hot tap insertion assembly to simplify installation. Adjustable insertion depth up to 12” ensures sensor is in flow for best results. Designed in CPVC for a user friendly cost compared to expensive stainless models, the S675 assembly is well suited for most water and wastewater treatment applications. Incorporates optional automatic temperature compensation (ATC) with 1000Ω RTD. Supplied with 10 foot cable. Designed for use with our S656CD Flat Surface pH Cartridge and BV-1 Ball Valve to facilitate removal from system without need for shutdown.

  • Durable CPVC construction: Durable design suitable for most applications
  • Simple maintenance: Remove sensors for cleaning and maintenance without system shutdown
  • Easy installation: Mount in any orientation (including horizontal mount) for ease of accessibility
  • One year limited warranty: We stand behind all our products with the Sensorex Guarantee

Note: Sensor cartridge not included. Purchase S656 Cartridge Style pH Electrode for use with S675 Insertion Assembly.

Note: For compatibility with Sensorex Transmitters select tinned leads and 1000Ω RTD (P1K) sensor options

CA Residents: Prop 65 WARNING(S)

Read More


  • Note: For compatibility with Sensorex Transmitters select tinned leads and 1000Ω RTD (P1K) sensor options


S675TC Instructions
DOWNLOAD

Weight1.33 lbs
Dimensions19 × 3 × 3 in

Users installing into large tanks, large process lines and scrubber lines will appreciate this hot tap assembly to simplify installation. Adjustable insertion depth up to 12” ensures sensor is in flow for best results. Designed in CPVC for a user friendly cost compared to expensive stainless models, the S675 assembly is well suited for most water and wastewater treatment applications. Incorporates optional automatic temperature compensation (ATC) with 1000Ω RTD. Supplied with 10 foot cable. Designed for use with our S656CD Flat Surface pH Cartridge and BV-1 Ball Valve to facilitate removal from system without need for shutdown.

  • Durable CPVC design is suitable for most applications
  • Remove sensors for cleaning and maintenance without system shutdown
  • Easy installation
  • One year limited warranty
: S675TC/P1K/10/TL/TL
Agotado

Ficha técnica

Dimensions
19 x 3 x 3 in
Applications
Installation Hardware & Accessories, pH
Note
For compatibility with Sensorex Transmitters select tinned leads and 1000Ω RTD (P1K) sensor options
Peso
1.33 lbs
