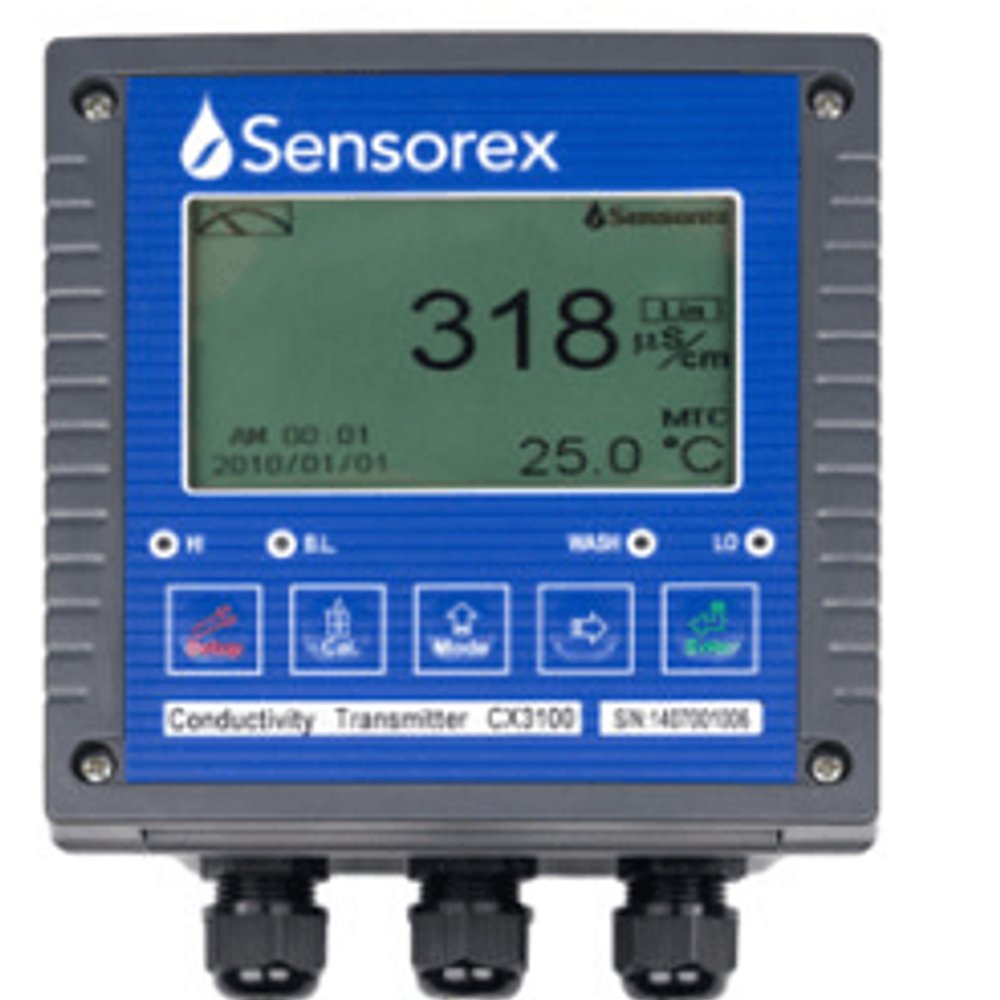

CX3100 - Conductivity Transmitter, Intelligent

CX3100 - Conductivity Transmitter, Intelligent

CX3100
Our CX3100 Conductivity Controller is an excellent choice for high temperature, high pressure applications. Compatible with our CS675 , CS676 , and CS700 stainless steel conductivity probes, the CX3100 is the only Sensorex controller with automatic temperature compensation up to 200°C. The CX3100 replaces the Sensorex CX3000, and features an updated user interface with user friendly full text and graphical display. Monitors conductivity, resistivity, TDS, or salinity 1/2 DIN Transmitter/Controller with full text and graphical display Ideal for use in high temperature applications (with stainless steel conductivity probes ) Automatic temperature compensation up to 200°C (PT1000 RTD)
Agotado
0 €
Impuestos incluidos
Cantidad

Fuera de stock

Our CX3100 Conductivity Controller is an excellent choice for high temperature, high pressure applications. Compatible with our CS675, CS676, and CS700 stainless steel conductivity probes, the CX3100 is the only Sensorex controller with automatic temperature compensation up to 200°C. The CX3100 replaces the Sensorex CX3000, and features an updated user interface with user friendly full text and graphical display.

  • Monitors conductivity, resistivity, TDS, or salinity
  • 1/2 DIN Transmitter/Controller with full text and graphical display
  • Ideal for use in high temperature applications (with stainless steel conductivity probes)
  • Automatic temperature compensation up to 200°C (PT1000 RTD)

CA Residents: Prop 65 WARNING(S)

Read More


  • Measurement Range Conductivity: 0-2000mS (in 7 ranges, auto or fixed), +/-1% Accuracy

    Measurement Range Resistivity: 0.00 – 20.00 MΩ/cm, 0.01 MΩ/cm resolution, +/-1% Accuracy

    Measurement Range Salinity: 0.0 – 199.99 ppt, 0.1 ppt (0.000-19.999 ppm)

    Temperature Range: -30°C to 200°C, 0.1°C resolution, 0.2°C accuracy

    Calibration Mode: Any tech & NIST buffers up to 3 points

    Cell Constants: 0.1 or 10/cm fixed or freely selectable 0.0080 – 19.99/cm

    Analog Output 1: 0/4-20mA, corresponding to Conductivity, Resistivity or Salinity output. Max load 500 Ω

    Analog Output 2: 0/4-20mA, corresponding to temperature output. Max load 500 Ω

    Relays: Contact : 240V AC, 5A max Activate: setpoints Hi/Low, Hi/Hi, Low/Low, ON/OFF

    Enclosure: 1/2 DIN NEMA 4X IP65

    Dimensions : 144 mm (5.67″) H x 144 mm (5.67″) W x 115mm (4.53″) D

    Panel Cut-Out: 138mm (5.43″) x 138mm (5.43″)

    Mounting Options: Panel or wall mount

    Temperature Compensation: Pt1000Ω RTD with automatic compensation or manually configured

    Temperature Coefficient: Linear comp 0.00-40.00%, Non-linear comp for pure water

    Power Requirement: 100-240V AC +/- 10%, 7W max, 50/60 Hz

    Certifications: CE

    Warranty: One year limited warranty

    Weight: Approx. 0.80kg (1.75lbs)


Instructions CX3100
DOWNLOAD
CX3100 Specifications
DOWNLOAD

Weight2.76 lbs
Dimensions11 × 10.5 × 6.5 in

Our CX3100 Conductivity Controller is an excellent choice for high temperature, high pressure applications. Compatible with our CS675, CS676, and CS700 stainless steel conductivity probes, the CX3100 is the only Sensorex controller with automatic temperature compensation up to 200°C. The CX3100 replaces the Sensorex CX3000, and features an updated user interface with user friendly full text and graphical display.

  • Monitors conductivity, resistivity, TDS, or salinity
  • 1/2 DIN Transmitter/Controller with full text and graphical display
  • Ideal for use in high temperature applications (with stainless steel conductivity probes)
  • Automatic temperature compensation up to 200°C (PT1000 RTD)
: CX3100
Agotado

Ficha técnica

Analog Output 2
0/4-20mA, corresponding to temperature output. Max load 500 Ω
Contact
240V AC, 5
A max Activate
setpoints Hi/Low, Hi/Hi, Low/Low, ON/OFF
Dimensions
11 x 10.5 x 6.5 in
144 mm (5.67″) H x 144 mm (5.67″) W x 115mm (4.53″) D
Mounting Options
Panel or wall mount
Temperature Coefficient
Linear comp 0.00-40.00%, Non-linear comp for pure water
Applications
Conductivity, Controllers & Transmitters
Certifications
CE
Warranty
One year limited warranty
Power Requirement
100-240V AC +/- 10%, 7W max, 50/60 Hz
Cell Constants
0.1 or 10/cm fixed or freely selectable 0.0080 - 19.99/cm
Enclosure
1/2 DIN NEMA 4X IP65
Measurement Range Conductivity
0-2000mS (in 7 ranges, auto or fixed), +/-1% Accuracy
Measurement Range Resistivity
0.00 - 20.00 MΩ/cm, 0.01 MΩ/cm resolution, +/-1% Accuracy
Calibration Mode
Any tech & NIST buffers up to 3 points
Measurement Range Salinity
0.0 - 199.99 ppt, 0.1 ppt (0.000-19.999 ppm)
Panel Cut-Out
138mm (5.43″) x 138mm (5.43″)
Analog Output 1
0/4-20mA, corresponding to Conductivity, Resistivity or Salinity output. Max load 500 Ω
Temperature Range
-30°C to 200°C, 0.1°C resolution, 0.2°C accuracy
Temperature Compensation
Pt1000Ω RTD with automatic compensation or manually configured
Peso
2.76 lbs
Approx. 0.80kg (1.75lbs)
