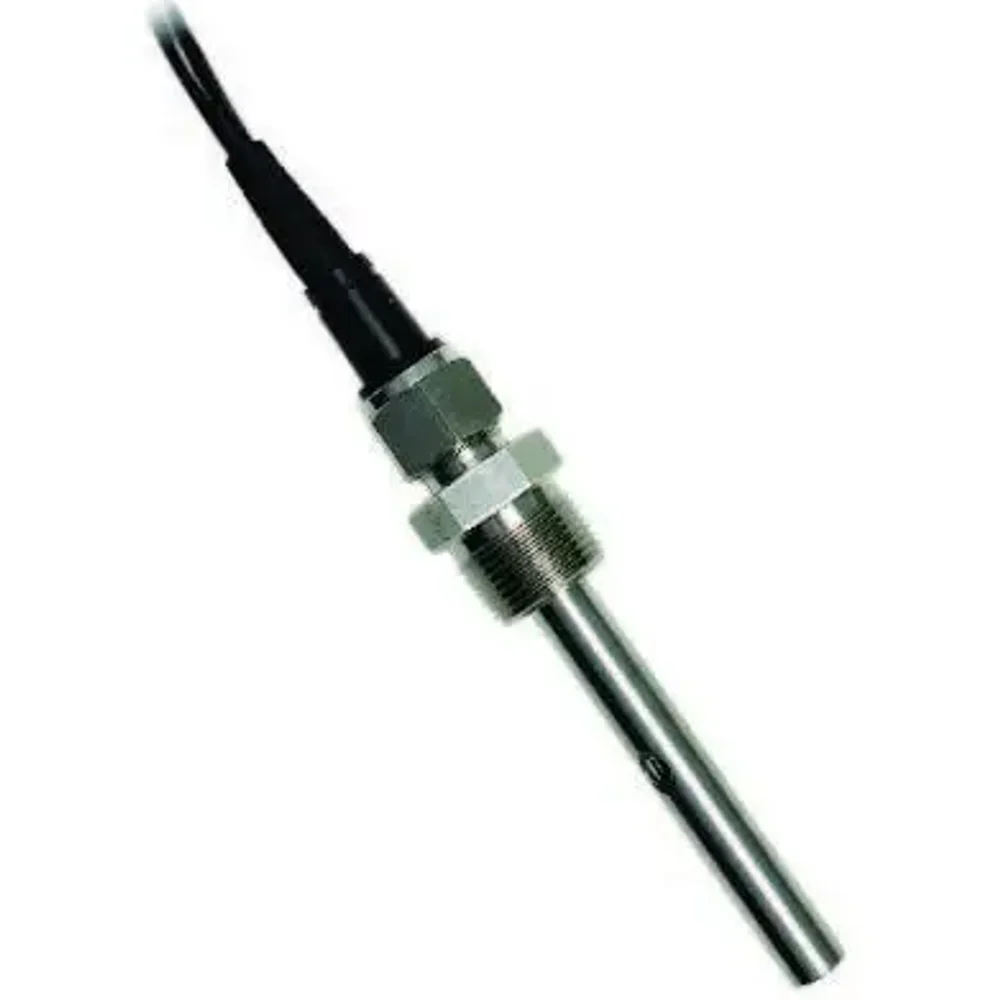

CS700 - Contacting Conductivity Sensor, High Performance Stainless Steel


CS700 - Contacting Conductivity Sensor, High Performance Stainless Steel

CS700-C-1-CC-3-A-2-B
High Accuracy and Repeatability Accuracy is 2% of reading with 1% repeatability* Electro-polish finish provides excellent stability and consistency Multiple Cell Constants Cover Wide Range of Applications 0.01/cm for ultra-pure/pure water 0.1/cm for pure and drinking water 1.0/cm for wastewater and process water Durable in High-Temperature and High-Pressure Environments Built from 316 Stainless Steel and Teflon Withstands up to 150° C (302° F) and 1379 KPA (200 PSIG) CA Residents :  Prop 65 WARNING(S) *Accuracy and repeatability of the sensor depends on the accuracy of the calibrating electronics
Cell Constant : C - 1.0
Installation Fitting Type : 2 - 1/2" NPT Stainless Steel
Temperature Compensation : 1 - PT1000 RTD
Agotado
2.077 €
Impuestos incluidos
Cantidad

Fuera de stock

The CS700 High Performance Contacting Conductivity Sensor is ideally suited for ultrapure/pure water, drinking water, and lower-conductivity drinking water applications. It’s durable in high-temperature (150° C / 302° F) and high-pressure environments (1,379 kpa / 200 psig), thanks to stainless steel and teflon construction. In addition, quick installation is made possible via using compression fitting with 3/4” or 1/2” threads. Pick from three cell constants based on your application: 0.01, 0.1 and 1.0.

Read More


  • Cell Constants: select from 0.01/cm, 0.1/cm, and 1.0/cm

    Response Time: < 30 seconds
    Temperature Rating: 150° C (302° F) with high temperature cable, 70° C with standard cable
    Pressure Rating: 1379 kPa (200 psig)

    Materials of Construction: 316 Stainless Steel Body with Teflon wetted materials
    Process Connection: 3/4” NPT or 1/2” NPT

    Cable length: 10 Foot Cable (3 Meters)

    Communication: Raw output (standard) or Remote Electronics (Modbus)
    Temperature Compensation: Pt1000 RTD


CS700 Instructions
DOWNLOAD
CS700 Specifications
DOWNLOAD

Weight0.46 lbs
Dimensions5.7 × 2 × 2 in
Cell ConstantA - 0.01, B - 0.1, C - 1.0
Temperature Compensation1 - PT1000 RTD
Installation/Fitting Type2 - 1/2" NPT Stainless Steel, 5 - 3/4" NPT Stainless Steel

High Accuracy and Repeatability

  • Accuracy is 2% of reading with 1% repeatability*
  • Electro-polish finish provides excellent stability and
    consistency

Multiple Cell Constants Cover Wide Range of Applications

  • 0.01/cm for ultra-pure/pure water
  • 0.1/cm for pure and drinking water
  • 1.0/cm for wastewater and process water

Durable in High-Temperature and High-Pressure Environments

  • Built from 316 Stainless Steel and Teflon
  • Withstands up to 150° C (302° F) and 1379 KPA (200 PSIG)

CA Residents: Prop 65 WARNING(S)

*Accuracy and repeatability of the sensor depends on the accuracy of the calibrating electronics

: CS700-C-1-CC-3-A-2-B
Agotado

Ficha técnica

Cell Constants
select from 0.01/cm, 0.1/cm, and 1.0/cm
Temperature Rating
150° C (302° F) with high temperature cable, 70° C with standard cable
Pressure Rating
1379 kPa (200 psig)
Materials of Construction
316 Stainless Steel Body with Teflon wetted materials
Dimensions
5.7 x 2 x 2 in
Applications
Conductivity, Online Sensors
Process Connection
3/4" NPT or 1/2" NPT
Longitud del cable
10 Foot Cable (3 Meters)
Temperature Compensation
1 - PT1000 RTD
PT1000 RTD
Cell Constant
A - 0.01, B - 0.1, C - 1.0
Communication
Raw output (standard) or Remote Electronics (Modbus)
Installation/Fitting Type
2 - 1/2" NPT Stainless Steel, 5 - 3/4" NPT Stainless Steel
Peso
0.46 lbs
Tiempo de respuesta
< 30 seconds
