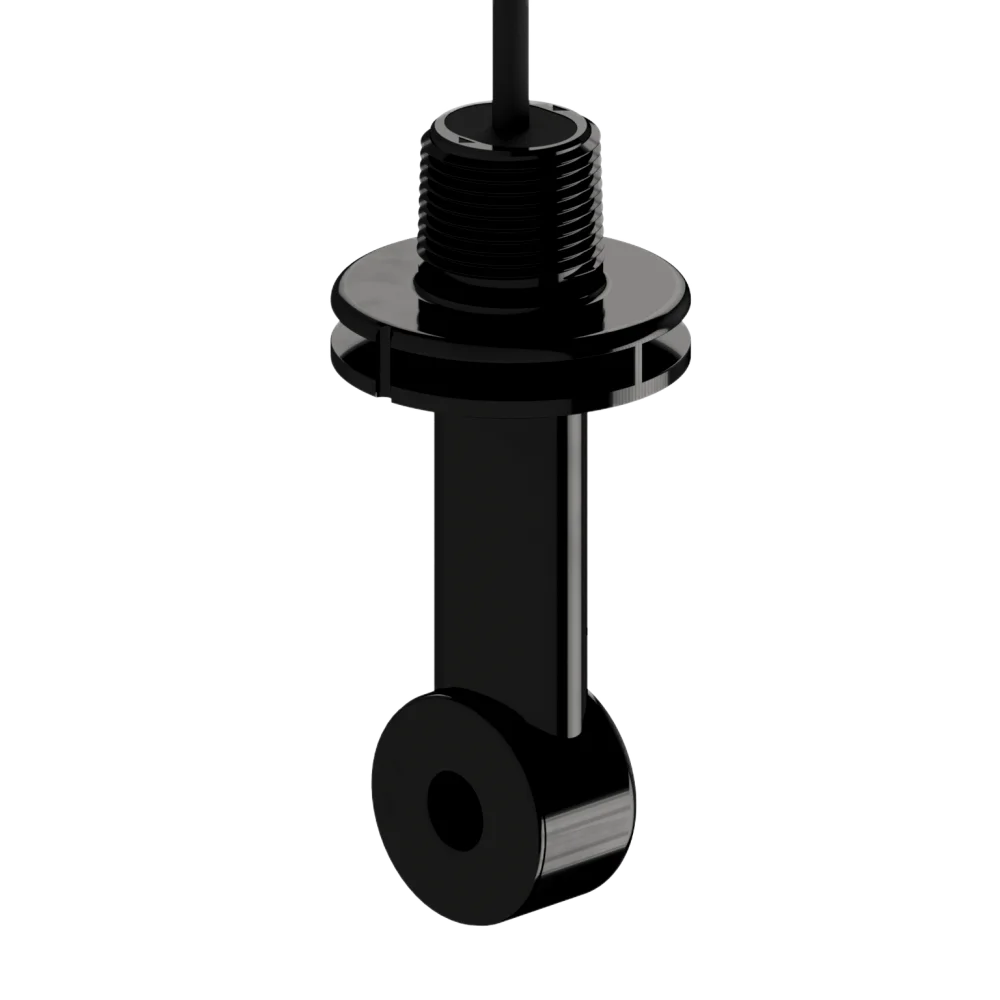

TCS3020 - General Purpose Noryl Toroidal Conductivity Sensor

TCS3020 - General Purpose Noryl Toroidal Conductivity Sensor

TCS3020-1-CC-3-A-1
Resistant to Corrosion, Coating, and Fouling Noryl body provides wide solvent tolerance and is stable up to 105° C Robust single-body design Wide Measurement Range Measures conductivity from 0 – 2,000,000 uS
Cable Length : CC - 10 ft (3 meters)
Esaurito
1.943 €
Tasse incluse
Quantità

Non disponibile

Sensorex’s TCS3020 General Purpose Noryl Toroidal Conductivity Sensor is designed to be resistant to corrosion, coating, and fouling. Sensor measures conductivity up to 2,000,000 uS. Noryl body provides wide solvent tolerance and is stable up to 105 C. Built-in Pt1000 temperature sesnors provides temperature compensation.

Tinned leads ensure simple connection to transmitters or other recieving device. Probe design provides 3/4 NPT thread for submersion mounting and a 2″ flange for inline installation (order FC95C Flow Cell seprately).

Read More


  • Temperature and Pressure Rating: 105 C and 150 psig

    Measuring Range: 0 – 2,000,000 uS

    Body Materials: Noryl

    Temperature Compensation: See ordering matrix

    Process Connection:

    • Submersion – 3/4″ MNPT
    • In-line – 2″ slip fitting to be used with FC95C flow cell (sold separately)

TCS3020 Instructions
DOWNLOAD
TCS3020 Specifications
DOWNLOAD

Weight1.00 lbs
Dimensions8 × 4 × 4 in
Cable LengthCC - 10 ft (3 meters), CD - 20 ft (6 meters)

Resistant to Corrosion, Coating, and Fouling

  • Noryl body provides wide solvent tolerance and is stable up to 105° C
  • Robust single-body design

Wide Measurement Range

  • Measures conductivity from 0 – 2,000,000 uS
: TCS3020-1-CC-3-A-1
Esaurito

Scheda tecnica

Applications
Conductivity, Hydroponics & Agriculture, Online Sensors, Toroidal Conductivity
Measuring Range
0 - 2,000,000 uS
Temperature and Pressure Rating
105 C and 150 psig
Body Materials
Noryl
Dimensions
8 x 4 x 4 in
Lunghezza del cavo
CC - 10 ft (3 meters), CD - 20 ft (6 meters)
Temperature Compensation
See ordering matrix
Peso
1.00 lbs
