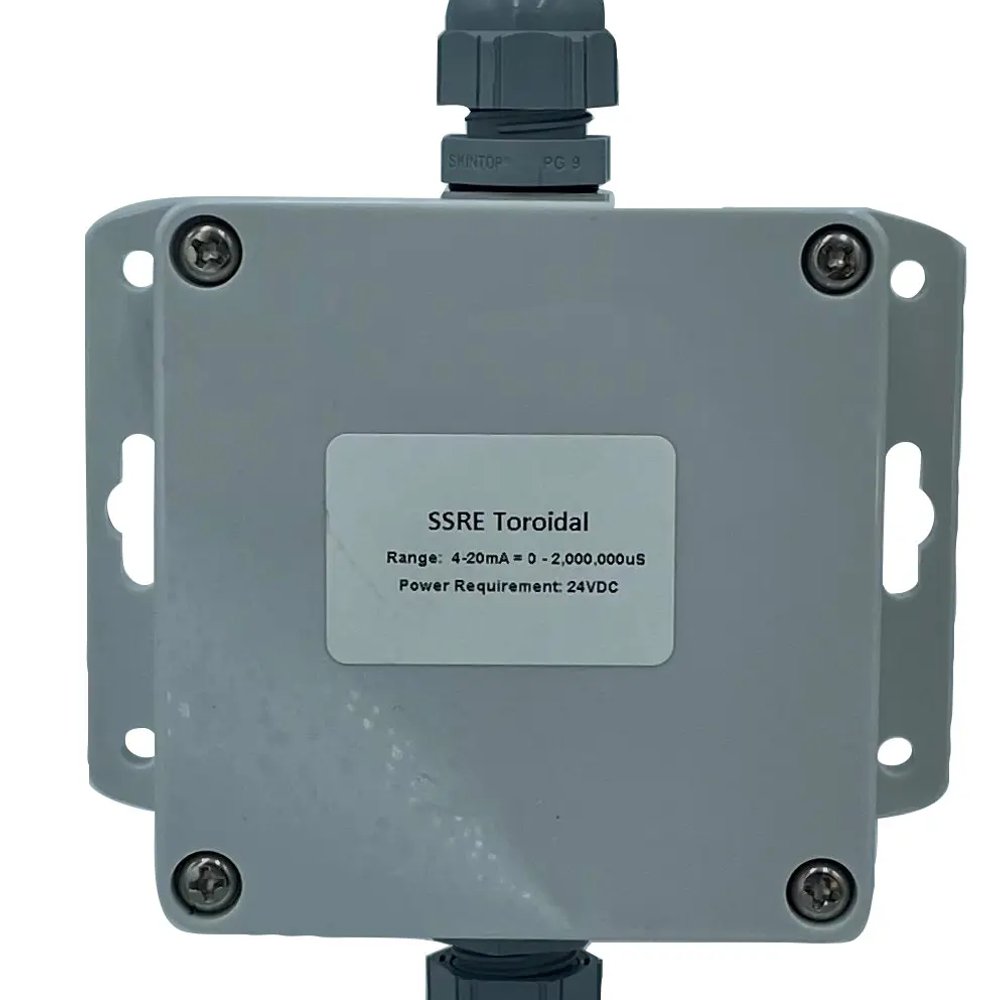

SSRE - Fern-Elektronik für intelligenten Sensor


SSRE - Fernelektronik für Smart-Sensoren

SSRE-D-MA/DR
Das Sensorex SSRE wandelt beliebige Sensorex-Sensoren in Smart‑Sensoren um und ermöglicht Kommunikation über 4-20 mA und Modbus. Es ist in zwei Ausführungen erhältlich: (1) DIN‑Schiene und (2) UL‑Gehäuse.
Communication : MA - 4-20 mA
Measurement Type : D - Gelöster Sauerstoff
Remote Electronics Form Factor : DR - DIN-Schiene
Beeilen Sie sich! 100 noch Artikel auf Lager.
1.296 €
Bruttopreis
Menge

Convert Analog Sensors into Smart Sensors

  • Reduce inventory by stocking analog sensors and wire them to remote electronics to output a digital communication signal (4-20 mA or Modbus)
  • Save on costs by only replacing the sensor; keep remote electronics and cabling in place
  • Improve environmental impact by eliminating electronics waste after sensor end of life

Compatible with a Comprehensive Set of Measurements

  • pH/ORP, Contacting Conductivity, Toroidal Conductivity, and Dissolved Oxygen
  • Simple wiring for each measurement type

Two Versions for Your Ideal Application

  • Interface module for DIN Rail installation
  • Enclosure box for wall or panel mounting
Read More


  • Operating Temperature Range: 5° – 70° C (41° – 158° F)
    Measuring Range pH : 0-14
    Measuring Range ORP: -1500 to + 1500mV
    Measuring Range Contacting Conductivity

    • k=0.1, 0-1,000uS/cm
    • k=1.0, 0-10,000uS/cm

    Measuring Range, Toroidal Conductivity

    • R1= 0-100,000uS/cm
    • R2= 0-2,000,00uS/cm

    Measuring Range, Dissolved Oxygen

    • R1= 0-100%
    • R2= 0-200%

    Dimensions

    • DIN Rail: 2.39″H x 3.54″L x 0.70″W (50.6mm x 89.8mm x 17.8mm)
    • NEMA Enclosed: 5.39″H x 4.30″L x 2.17″W (137mm x 109mm x 55mm)




Smart Sensor Remote Electronics Instructions
DOWNLOAD
Flyer - SSRE Remote Elecronics Module
DOWNLOAD
Sensorex Smart Sensor Modbus User Instruction Rev 1.3
DOWNLOAD
Smart Sensor Software
DOWNLOAD
Smart Sensor User Interface Advanced A Instructions
DOWNLOAD
SENSOREX SMART SENSORS BROCHURE
DOWNLOAD

Weight0.50 lbs
Dimensions10 × 10 × 5 in
Measurement TypeP - pH, T - Toroidal Conductivity, C - Contacting Conductivity, O - ORP, D - Dissolved Oxygen
CommunicationMA - 4-20 mA, MB - Modbus
Remote Electronics Form FactorDR - DIN Rail, EN - UL Enclosure

The Sensorex SSRE is used to convert any Sensorex sensor to a smart sensor. It allows for communication in 4-20 mA and modbus. It comes in two variations: (1) DIN rail and (2) UL Enclosure.

: SSRE-D-MA/DR
Beeilen Sie sich! 100 noch Artikel auf Lager.

Technische Daten

Abmessungen
10 x 10 x 5 in
Anwendungen
Kalibrierungen und Wartung, S8000 modulares Sensorsystem, intelligente Sensoren
Betriebstemperaturbereich
5 °C – 70 °C (41 °F – 158 °F)
pH-Messbereich
0-14
Messbereich O RP
-1500 bis +1500 mV
Messart
P - pH, T - toroidale Leitfähigkeit, C - Kontaktleitfähigkeit, O - ORP, D - gelöster Sauerstoff
Kommunikation
Formfaktor der Fern-Elektronik
Gewicht
0.50 lbs
